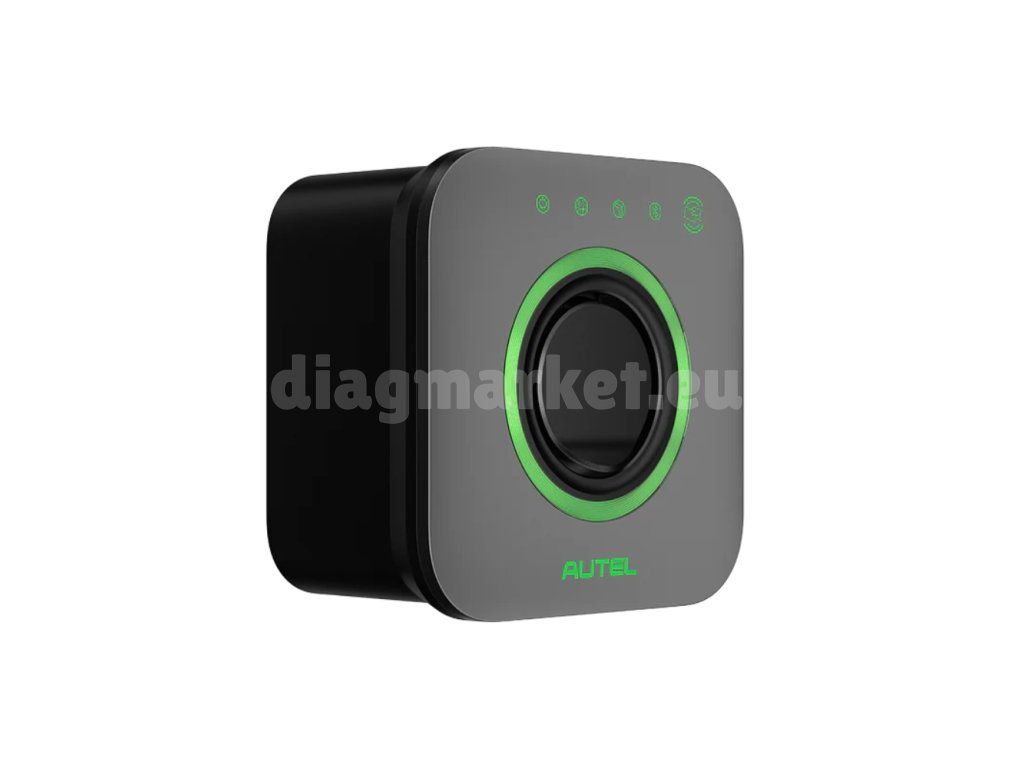

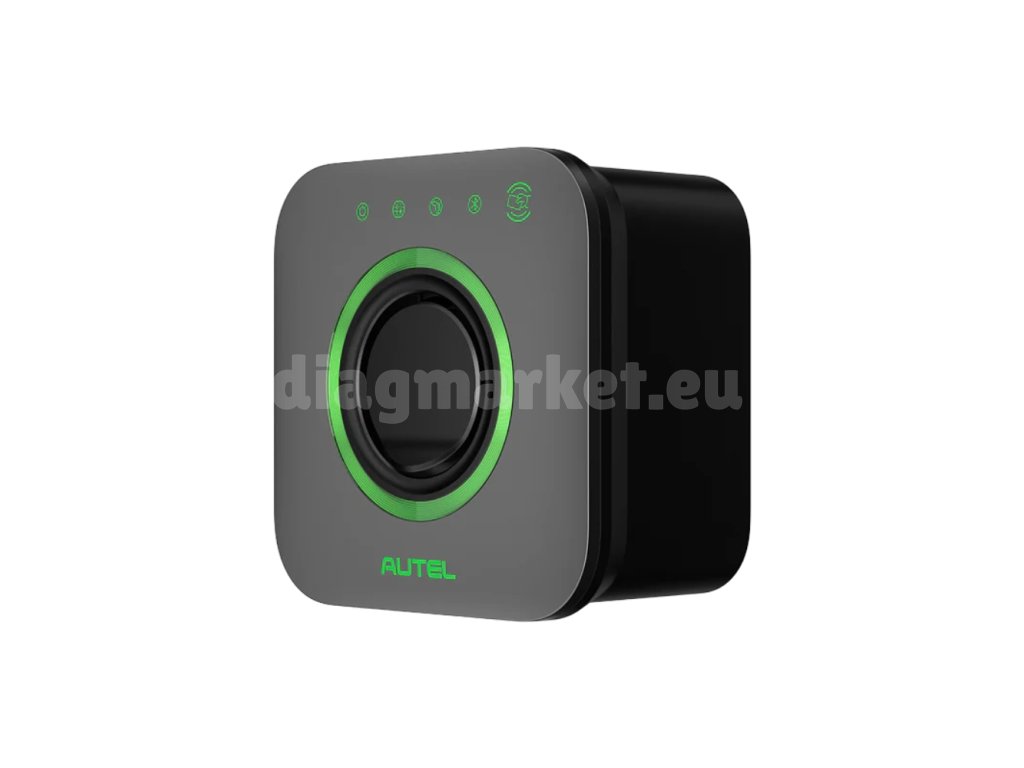

Autel MaxiCharger AC Compact 22kW

Product detailed description

Autel's smallest charging station delivers up to 22 kW of power and other top performance features. With the Autel MaxiCharger AC Compact, charging your EV or PHEV is easy, and the supporting apps keep you in control of the entire process.

• Charging mode: Mode 3
• Output power: 3 phase up to 22kW/32A
• Input voltage: 400V±15% - 3 phase; 50Hz
• Mains type: 3 phase - L1, L2, L3, N, PE
• Connector type: IEC 62196 type 2 normal socket
• Residual current detection: AC 30mA + DC 6mA
• Protection: overcurrent, overvoltage, undervoltage, integrated surge protector
• Card reader (optional): ISO 14443
• Measurement accuracy: +/- 2.0%

Operating Characteristics

• IP protection: IP54
• Operating altitude: 2,000 m
• Operating temperature: -30℃~+50℃
• Storage temperature: -40℃~+70℃
• Mounting: wall or ground (using stand - not included)
• Dimensions (h x w x d): 202 × 202 × 115 mm

User Interface

• Status indication: LED indication, application
• User interface: Autel Charge APP; Autel Charge Cloud
• Connectivity: Bluetooth, Wi-Fi, Ethernet (optional), RS485, 4G (optional), Modbus TCP/IP
• Communication protocols: OCPP 1.6J
• Login methods: APP, AutoStart, RFID card (optional)
• Software update: via internet

Certifications and Standards

• Safety and standards: IEC 61851-1, EN 50663, EN 50665, IEC/EN62955
• Certification: CE (TÜV)
• Warranty: 36 months (extendable)

Package Content

• Autel MaxiCharger AC Compact
• User Manual
