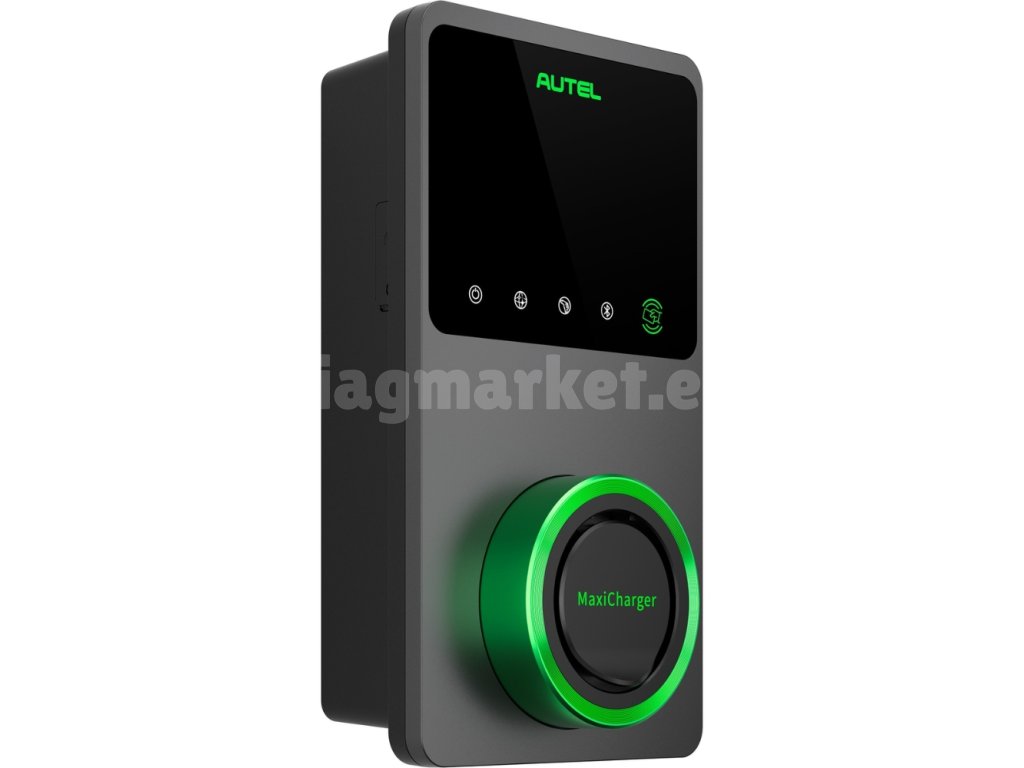

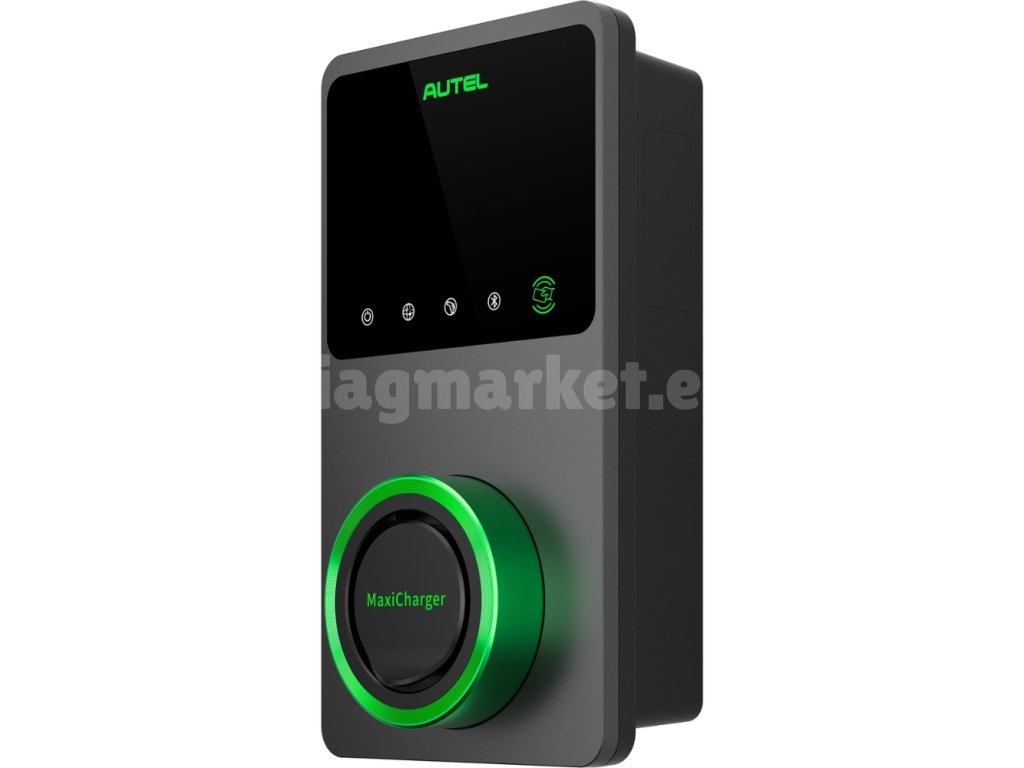

Autel MaxiCharger AC Wallbox 7/11/22kW
Code: 1608/22K4 1608/22K3 1608/22K2 1608/22K 1608/11K 1608/7KW2 1608/7KW Choose variantProduct detailed description

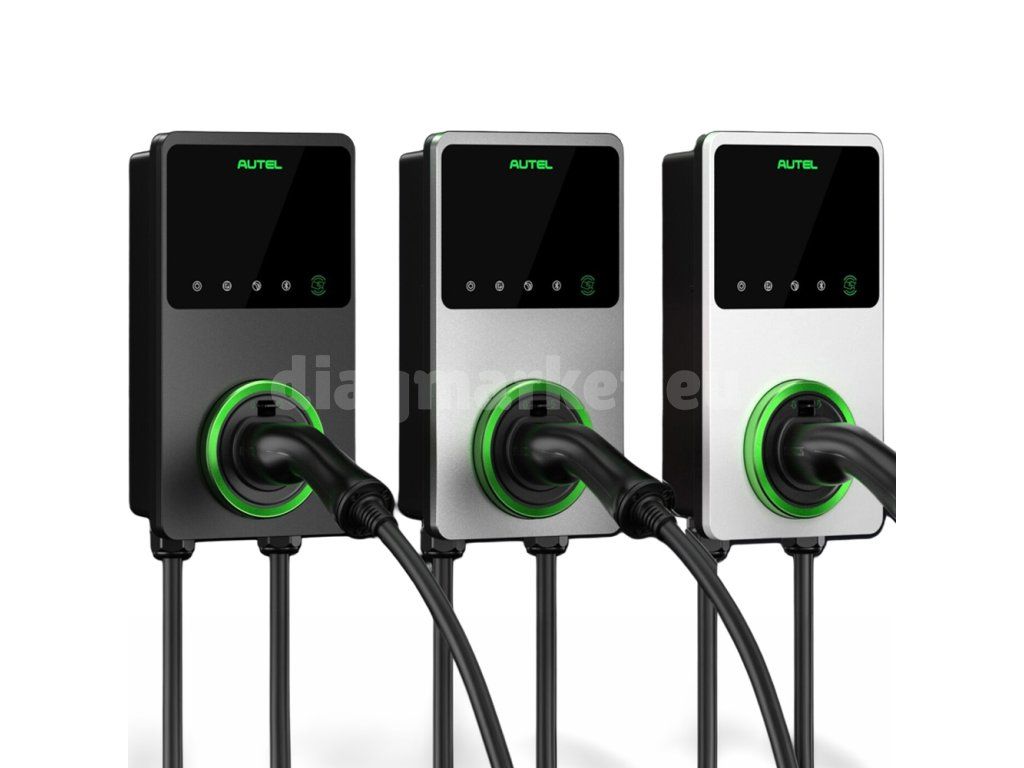

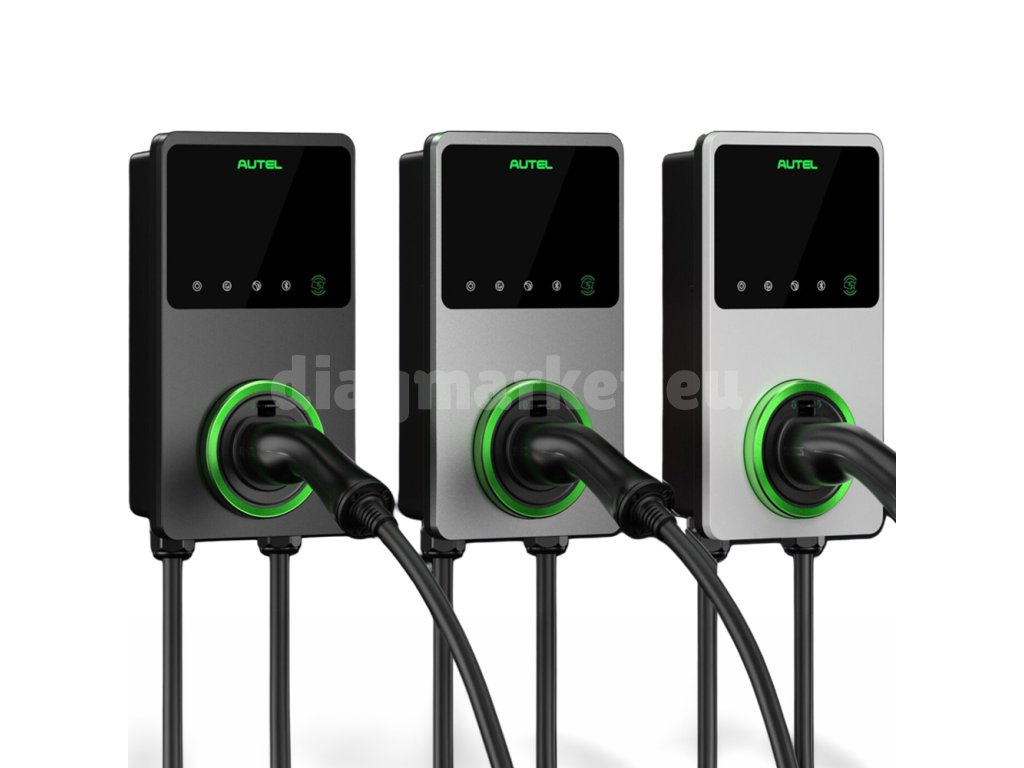

Autel's popular wallbox delivers up to 7, 11 or 22 kW of power and more. You can choose a plug-in or corded version. Optionally, you can order your wallbox with a display or control it via an app. With the Autel MaxiCharger AC Wallbox, you can charge your EV or PHEV easily and safely, and thanks to the supporting apps, you'll be in control of the entire process.
- Charging mode: Mode 3
- Output power: 1 phase up to 7.4kW/32A or 3 phase up to 11kW/16A or 3 phase up to 22kW/32A
- Input voltage: 230V±15% - 1 phase; 400V±15% - 3 phase; 50Hz
- mains type: 1 phase - L1, N, PE or 3 phases - L1, L2, L3, N, PE
- connector type: IEC 62196 type 2 or type 1 plug (5m cable) or IEC 62196 type 2 socket
- residual current detection: AC 30mA + DC 6mA
- Protection: over-current, over-voltage, under-voltage, integrated surge protector
- card reader (optional): ISO 15693, ISO 14443, NFC
- measurement accuracy: +/- 1.0%
The main advantages of Autel charging stations also include high safety with multi-stage protection technology, real-time vehicle data analysis function with early safety warning, safe charging mode to prevent overcharging and maintain battery stability, real-time monitoring of the EV battery status to prevent thermal leakage, high reliability and protection and last but not least IP65 protection with treatment against salt, dust and condensation.
Operational Features
- IP and IK protection rating - IP65 (IP54 for the plug-in version); IK10 (screen: IK08)
- working altitude: 2,000 m
- working temperature: -40℃~+55℃
- Storage temperature: -40℃~+85℃
- Mounting: wall or ground (using stand - not included)
- Dimensions (h x w x d): 336 x 187 x 85 mm
User Interface
- Status indication: LED/APP/touch screen (optional 5″ LCD display, 800*480)
- User interface: Autel Charge APP; Autel Charge Cloud
- Connectivity: Bluetooth, Wi-Fi, Ethernet, 4G, CAN, RS485 for energy meter connection
- Communication protocols: OCPP 1.6J
- Login methods: APP, RFID card
- Software update: via internet
Certification and Standards
- Security and standards: IEC/EN 61851-1, EN 62311, EN 62479, IEC/EN 62955
- Certification: CE (TÜV)
- Warranty: 36 months (extendable)
Package Content
- Autel MaxiCharger AC Wallbox
- User Manual
