Autel MaxiSYS ADAS IA600 Full Kit

Product detailed description

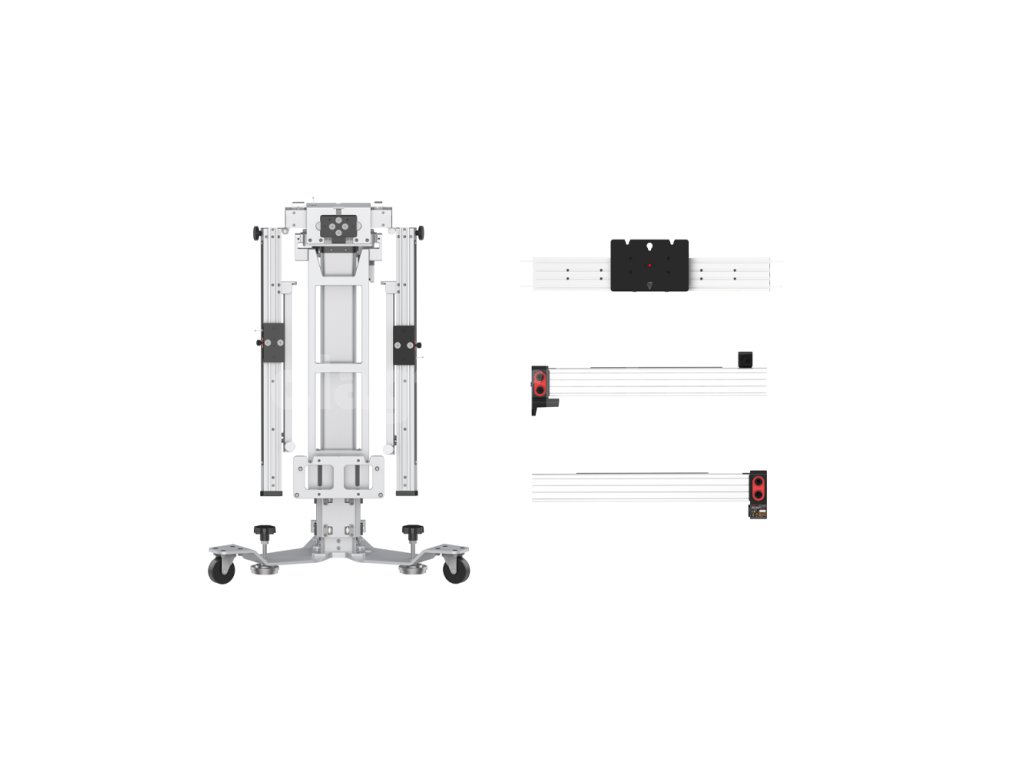

The Autel IA600 mobile calibration frame is a compact ADAS option for easy transport. Thanks to its quick folding and unfolding, the IA600 offers versatile use. You can easily transport the equipment between different service points. The Autel MaxiSYS ADAS is the ideal solution for calibrating driving assistants after windshield replacement or other service tasks that affect sensors located in the vehicle. The main function of the IA600 is the calibration of the LDW system (lane departure warning). The ADAS IA600 portable calibration system includes a foldable aluminum calibration frame, a two-line centering and five-line alignment laser, laser reflectors and a set of calibration targets for LDW calibration.

Model IA600 features cameras for maximum ease of frame alignment. This allows the frame to be set up in minutes. We will be happy to prepare an individual quote for you, please do not hesitate to contact us.

Hardware

• precise design
• precise adjustment using cameras
• mobile use thanks to easy folding and unfolding
• Affordable modular solution

Software

• easy to use thanks to intelligent height adjustment
• regular update of data needed for accurate calibration
• correct calibration procedure
• Intuitive operation with numerous tutorials and step-by-step instructions
• Pre-Scan & Post-Scan reports
• extendable with AVM (around view monitoring) and RCW (rear collision warning) calibration

IA600 is compatible with, for example, Autel MaxiSYS MS906BT or MaxiSYS Ultra. In order to calibrate ADAS, the following conditions must be met:

• Active update of the diagnostic tablet
• purchase of a software extension for ADAS calibration (one-time fee approx. 30 000 CZK)

Technical Parameters

• Calibration frame dimensions: 2510 x 714 x 1480-2105 mm
• Weight of calibration frame - 74.5 kg / 152 kg (complete)
• Rated power - 24 V, 3A
• Rated laser power - 3 V, 25 mA
• Laser battery type - AA 2×1.5 V
• Laser Class - Class 2
• Certification - CE, FCC, RoHS

Package Content

• portable Autel ADAS IA600 calibration frame
• foldable aluminium calibration frame with travel case
• Camera kit for easy setup
• 4x wheel clamp
• ACC calibration mirror
• LDW target for Mercedes cars
• LDW target for VW cars
• LDW target for Nissan
• LDW target for Honda
• LDW target for Nissan / Infiniti
• LDW target for Hyundai/Kia/Jeep/Fiat
• LDW target for Honda II
• LDW target for Hyundai/Kia
• LDW target for Toyota/Lexus
• LDW target for Toyota/Lexus
