Autel MaxiSYS ADAS MA600 Full Kit

Product detailed description

The Autel MA600 mobile calibration frame is a compact version of the ADAS for easy transport. Thanks to its quick folding and unfolding, the MA600 offers versatile use. You can easily transport the device between different service points. The Autel MaxiSYS ADAS is the ideal solution for calibrating driving assistants after windshield replacement or other service tasks that affect sensors located in the vehicle. The main function of the MA600 is the calibration of the LDW system (lane departure warning). The ADAS MA600 portable calibration system includes a foldable aluminum calibration frame, a two-line centering and five-line alignment laser, laser reflectors and a set of calibration targets for LDW calibration.

We will be happy to prepare an individual offer for you, please do not hesitate to contact us.

Hardware

• precise design
• precise adjustment with laser and measuring tools.
• mobile use thanks to easy folding and unfolding
• Affordable modular solution

Software

• easy to use thanks to intelligent height adjustment
• regular update of data needed for accurate calibration
• correct calibration procedure
• Intuitive operation with numerous tutorials and step-by-step instructions
• Pre-Scan & Post-Scan reports
• extendable with AVM (around view monitoring) and RCW (rear collision warning) calibration

MA600 is compatible with Autel MaxiSYS MS906BT or MaxiSYS Ultra. In order to calibrate ADAS, the following conditions must be met:

• active diagnostic tablet update
• purchase of a software extension for ADAS calibration (one-time fee approx. 1 200 EUR)

Technical Parameters

• Calibration frame dimensions: 2510 x 714 x 1480-2105 mm
• Weight of calibration frame - 74.5 kg / 152 kg (complete)
• Rated power - 24 V, 3A
• Rated laser power - 3 V, 25 mA
• Laser battery type - AA 2×1.5 V
• Laser Class - Class 2
• Certification - CE, FCC, RoHS

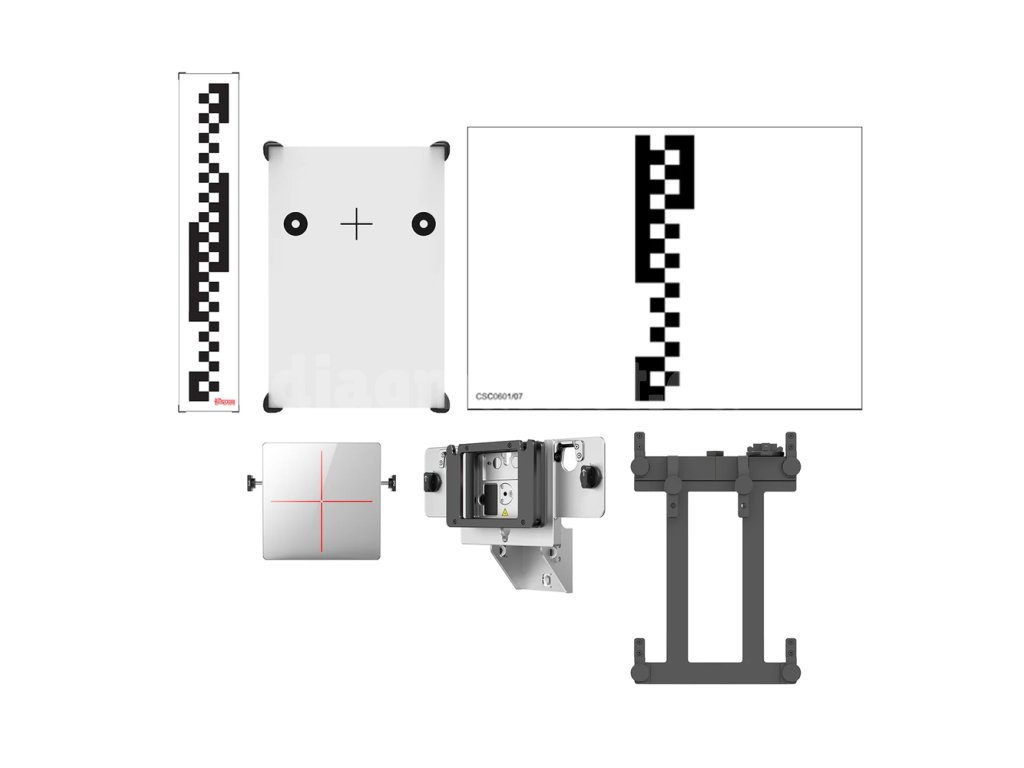

Package Content

• portable Autel ADAS MA600 calibration frame
• foldable aluminium calibration frame with travel case
• 2-line centering laser
• 5-line alignment laser
• ACC calibration mirror

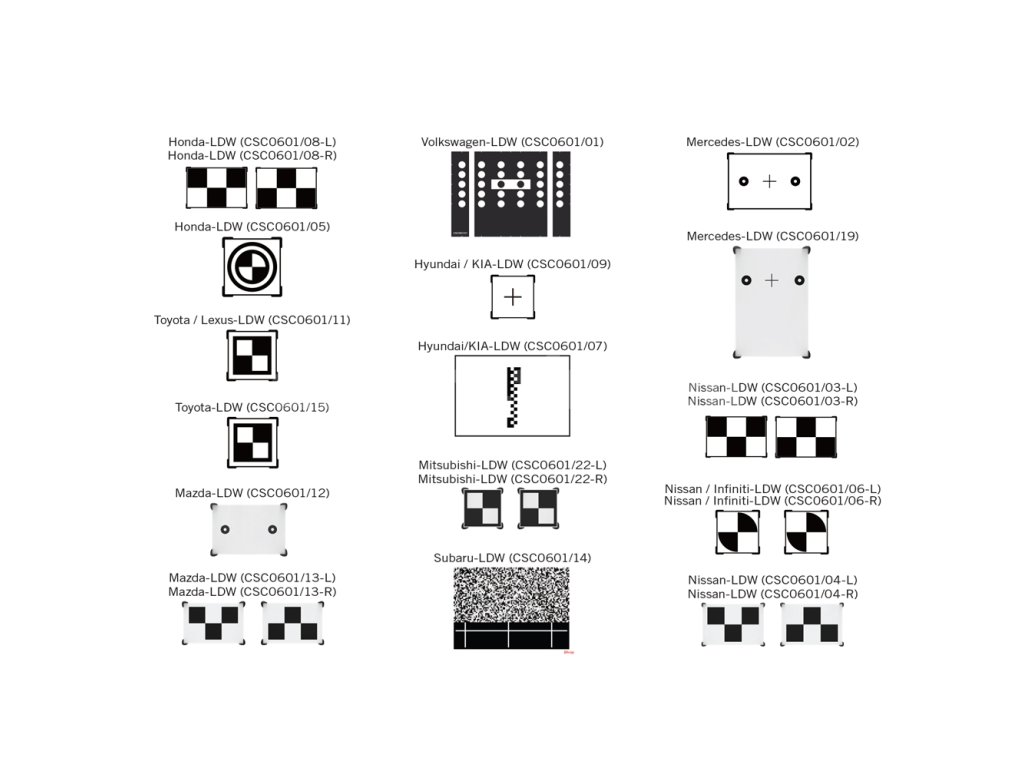

• LDW target for Mercedes cars
• LDW target for VW vehicles
• LDW target for Nissan
• LDW target for Honda vehicles
• LDW target for Nissan / Infiniti
• LDW target for Hyundai/Kia/Jeep/Fiat
• LDW target for Honda II
• LDW target for Hyundai/Kia
• LDW target for Toyota/Lexus
• LDW target for Toyota/Lexus
• LDW target for Mercedes/Nissan
• LDW target for Mazda I
• LDW target for Mazda II
• LDW target for Subaru vehicles
• LDW target for Mercedes II
