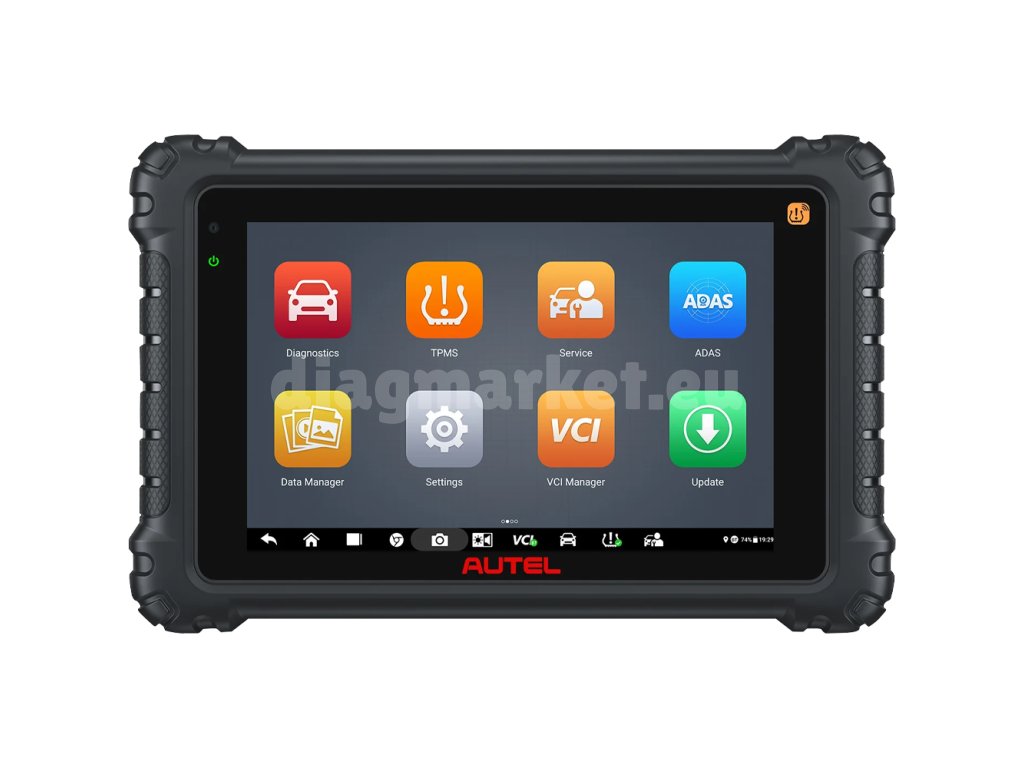

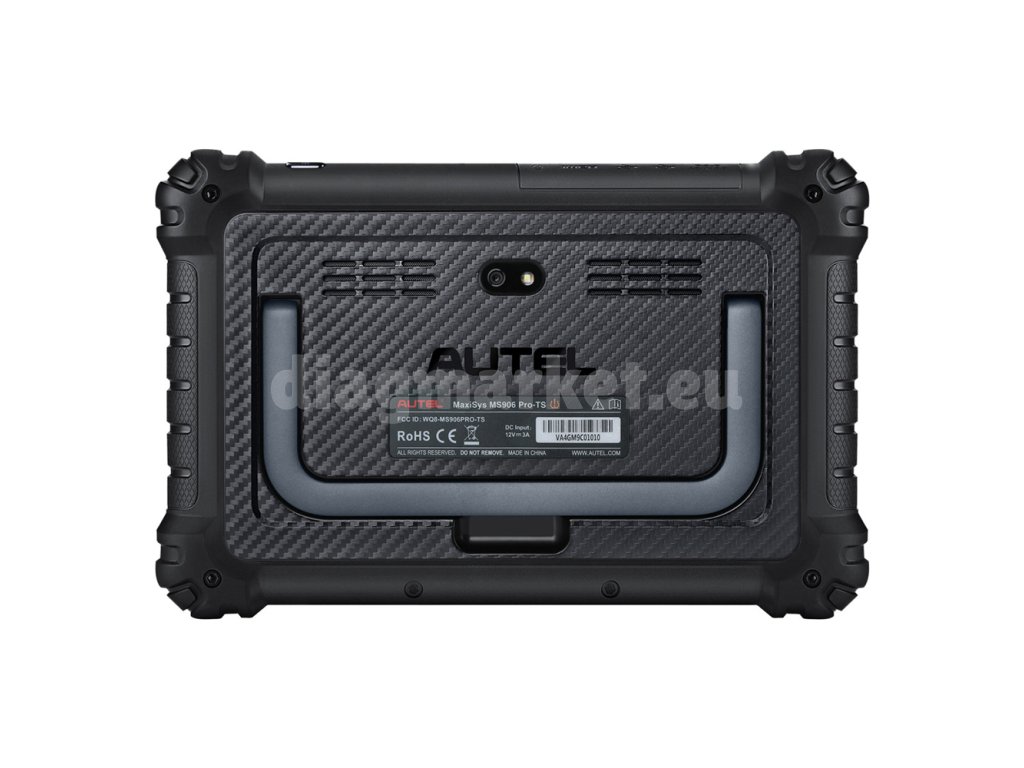

    Autel MaxiSYS MS906 Pro-TS 2025

    Code: 2646
    autel maxisys ms 900 pro ts 3
    €1 990 €1 644,63 excl. VAT
    In stock
    Delivery to:
    5.2.2025
    Delivery offer

    The Autel MS906 Pro-TS is an advanced variation of model MK906 Pro. The tool codes TPMS valves.

    Detailed information

    Product detailed description

    The Autel MS906 Pro-TS offers complete diagnostics of all units on most European, Asian and American cars, combined with advanced service features and TPMS coding. Unlike cheap universal devices, it is not limited to diagnostics within the OBD-II standard. Supports older vehicles (OBD-I). It can read the readiness code, reset service intervals, diagnose and regenerate DPF, perform basic throttle settings, reset automatic transmission adaptations, perform complete TPMS diagnostics, register battery, code the injectors, code keys and remotes and many other tasks. In addition to the engine unit, the automatic transmission, ABS, airbags, dashboard and other units in the car are also supported. Adapter kit for older vehicles is included. Wireless VCI make the diagnostic work comfortable together with Full HD display (1920x1200) and HDMI output to connect with external display or TV. The tool can perform TPMS sensor coding by approx. 99 % vehicles.

    A great advantage of Autel Europe scanners is the direct support of SGW at an unbeatable price. You can find the best package for unlocking the security gateway on FCA, Mercedes, Nissan, Renault and VAG vehicles here.

    Diagnostic Functions

    • Control unit identification
    • Reading fault codes of all control units
    • Clear fault codes of all control units
    • Display live data
    • Active tests
    • Adaptation
    • Coding
    • Online coding

    Service Functions

    • Service intervals reset
    • ABS bleeding
    • Injector coding
    • Steering wheel angle sensor reset
    • Reset of automatic transmission adaptations
    • Battery registration
    • TPMS reset
    • Electric parking brake handling
    • Throttle basic settings
    • Air suspension calibration
    • Coolant bleeding
    • Doors and windows adjustments
    • Adaptive lights calibration
    • adBlue reset
    • NOx sensor reset
    • Start/Stop reset
    • GPF replace and regeneration
    • DPF replace and regeneration and much more...

    OBD-II Functions

    • reading engine fault codes - P0, P2, P3, U0 and manufacturer specific codes P1, P3, U1 - permanent and temporary faults
    • clearing engine fault codes
    • extinguishing emission warning light (MIL)
    • live engine data
    • freeze frame engine data
    • I/M Readiness test
    • lambda sensor test
    • EVAP system test
    • battery test
    • display vehicle information (VIN, CVN and more)
    • OBD-II fault code database
    • support for most OBD-II test modes including CAN, ISO9141, KWP2000, J1850 VPW, J1850 PWM protocols

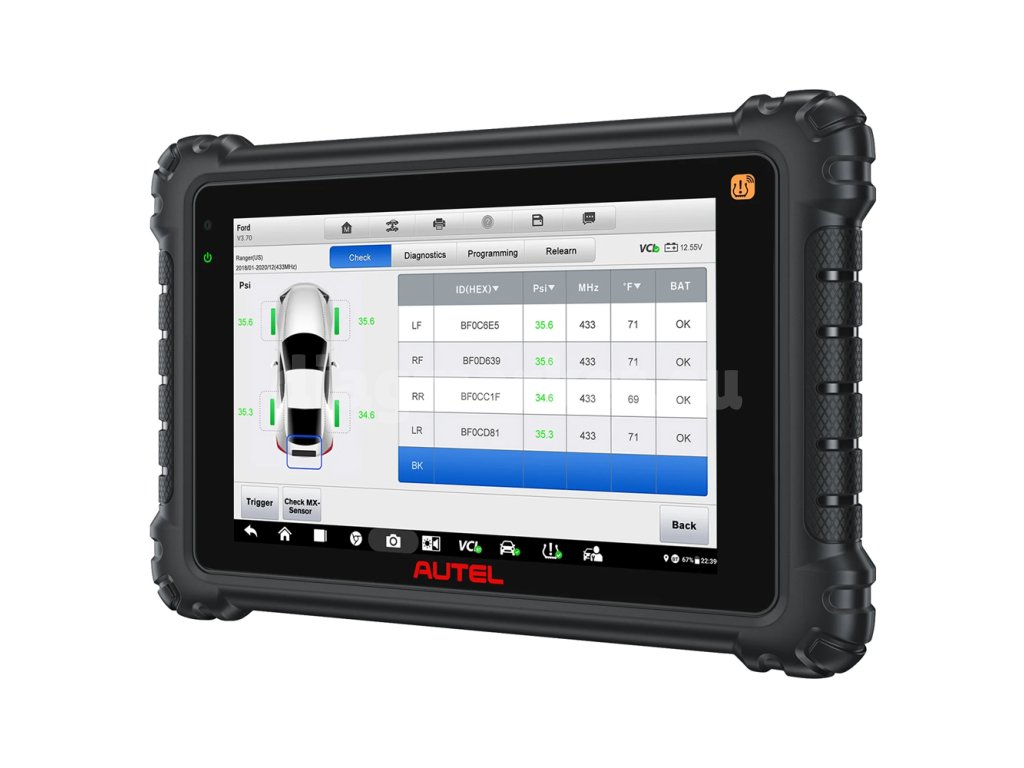

    TPMS Functions

    Diagnostics is able to activate/read 99% of known TPMS sensors, read and clear TPMS errors, display manufacturer specific valve coding procedures, can also handle sensor learning even when replacing original sensors with Autel MX replacements.

    • check - activate TPMS sensors to display ID, tire pressure, tire temperature, battery status and sensor location.
    • diagnostics - displays system status, reads and clears any errors
    • coding - when replacing original sensors with Autel MX sensors, can code these:
    • copy by activation - will program the sensor ID obtained from the sensor
    • copy via OBD-II - will program the sensor ID obtained from the TPMS unit
    • copy by input - will allow manual input of the original sensor ID
    • auto create - will create a random ID to program the sensor
    • TPMS learning - this function is designed to program the newly created sensor ID into the TPMS unit - 3 ways of implementation
    • if the original part number is known , this function allows Autel MX sensors to be activated and programmed. This method allows up to 20 sensors to be coded at once.

    Updates

    1-year free update is included in the price of the device. After this time you can still use the device, updates are not mandatory, but you will not have information and support for newer car models. For a price list of updates, click here.

    Additional Equipment (not included)

    Quick Overview of Autel Models

    • diagnostic and service functions: MK808S, MK808K-BT, MK808S-TS, MK900, MK900TS, MX900, MX900TS
    • diagnostic and service functions and coding: MP808S, MP808S-TS, MP900, MP900BT, MP900TS, DS900, DS900BT, DS900TS
    • advanced models: MK906BT, MK906 Pro, MK906Pro-TS, MK908P, MS908S3 MS Elite II, MS906 Pro, MS906 Pro-TS, MS909, MS909EV, MS919
    • TOP models: Ultra Lite, Ultra, Ultra EV
    • IMMO series: IM508S, IM608 II Pro

    Why choose Autel MS906 Pro-TS?

    • offers all common diagnostic and service functions together with advanced TPMS functions
    • affordable SGW package
    • support for cars up to 2025
    • high-res 8-inch display (1920x1200 pixels)
    • support for CAN-FD and DoIP communication protocols
    • coding and online coding supported
    • wireless VCI
    • HDMI connector

    Supported Vehicles (1996 - 2025)

    Asian

    Acura, Daewoo, Holden, Honda, Hyundai, Infiniti, Isuzu, Kia, Lexus, Mazda, Mitsubishi, Nissan, Scion, Subaru, Suzuki, Toyota.

    European

    Abarth, Alfa-Romeo, Audi, BMW, Citroen, Dacia, Fiat, Ford, Jaguar, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Saab, Seat, Skoda,, Smart, Sprinter, Vauxhall, Volvo, Volkswagen.

    American

    Ford, GM, Chrysler.

    Supported languages

    The device supports different languages. After receiving the device, send us the serial number and we will authorize the device for you in desired language. The translation may not be completely 100%. The scope of the translation is being extended and in our experience the translation is well usable and will make your work easier.

    List of the supported languages: English, Arabic, Czech, Dutch, French, German, Hebrew, Indonesian English, Italian, Japanese, Korean, Persian, Polish, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Portuguese, Turkish, Thai, Vietnamese

    Hardware Specification

    • operating system: Android 10.0
    • memory: 4GB / 128 GB
    • display: 8" touch screen with 1920x1200 pixel resolution
    • HDMI connector
    • operating temperature: 0 - 50°C
    • storage temperature: -20 - 70°C
    • operating humidity: 5 - 95% (non-condensing)
    • dimensions: 237 x 149 x 36 mm

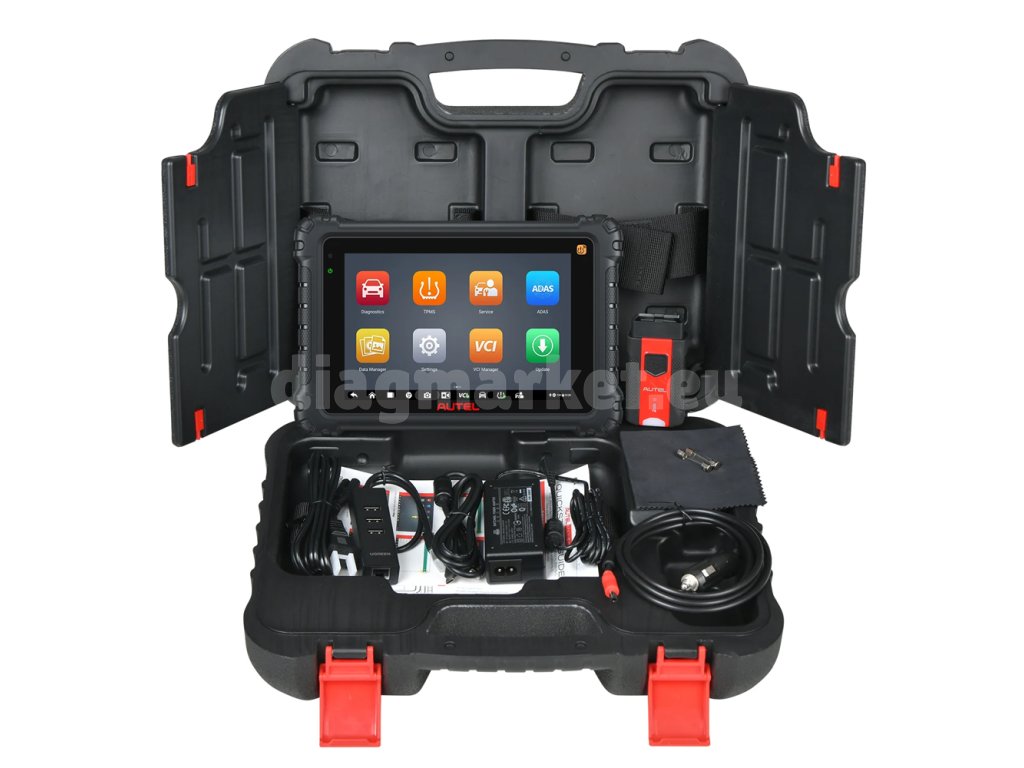

    Package Content

    • Autel MaxiSYS MS906 Pro-TS
    • wireless VCI (vehicle communication interface)
    • USB cable
    • practical carrying case
    • quick start guide
    • detailed manual
