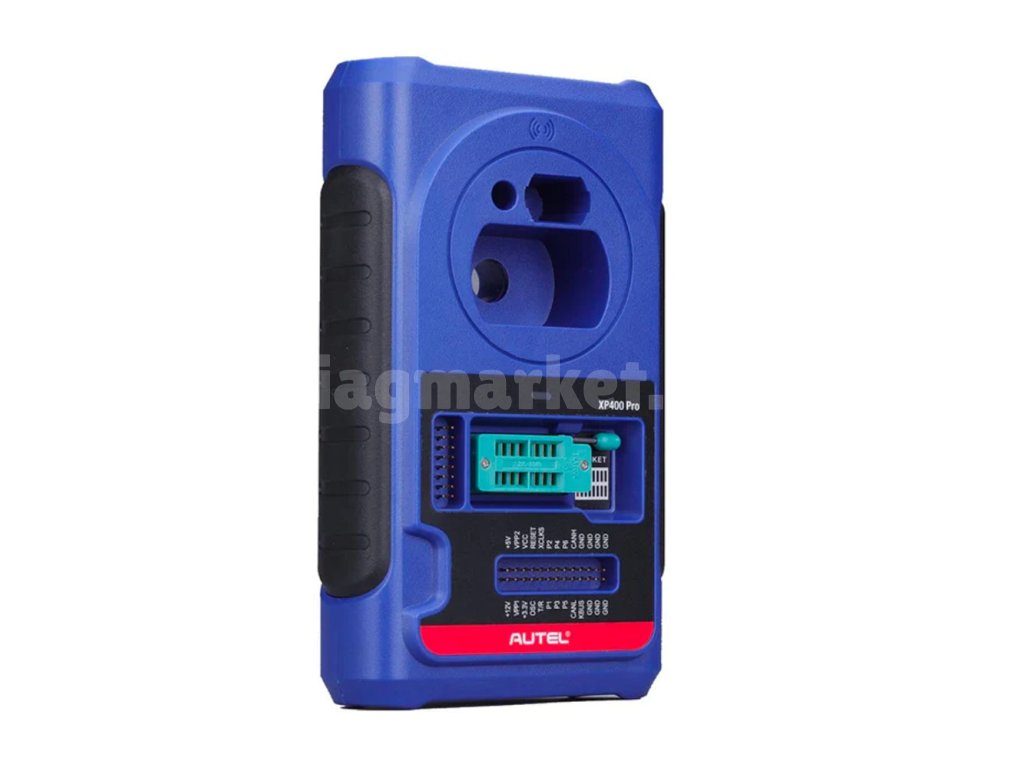

Autel XP400 Pro Programmer

Product detailed description

Autel XP400 Pro is an advanced add-on compatible with Autel IM508, IM608 and Otofix IM tools. It allows advanced key programming.

Features

• Expanded EEPROM functions for more component access
• 170+ types Odometer component reading functions
• 180+ Immobilizer ECU component types
• 40+ Engine ECU component types
• 2000+ MCU component types
• 440+ EEPROM component types

This add-on is allows reading and writing of the transponder code. It can generate and clone keys, read and erase EEPROM and Freescale 9S12 MCUs. All operations are performed without connection to the vehicle. A PC support application is included. Functions:

• Key Generation
• Key Programming, Add Key, All Key Lost
• Remote Learning
• EEPROM Read & Write
• Transponder Read & Write
• IMMO ECU Reset & Adaptation
• IMMO ECU Refresh & Coding

Supported Chips

• EEPROM-->>AMD-->>AM29FXXX series chip
• EEPROM-->> FUJITSU-->> MB29FXXX series chip
• EEPROM-->> ST-->> M29FXXX series chip
• Engine control module-->> ST-->> M29FXXX series chip
• IMMO-->> BENZ-->> ESL_W209_W906 (Motorola) read/write/erase function
• IMMO-->> BMW-->>EWS3 module read/write function
• REMOTE_RENEW(renew key)-->> NEC-->> V51 and V5 chip read/write/erase

Supported Boards

• APB113 PCF79XXadaptor board
• APB114 EWS3 adaptor board
• APB115 NEC Adapter board
• APB118 NEC ELV adaptor board
• APB119 TB28FXXXadaptor board
• APB120 TMS370adaptor board
• APB121 AM29FXXX Adapter board
• APB122 AM29FXXX adaptor board1
• APB123 AM29FXXX adaptor board2
• APB126 M35080/D80 adaptor board
• APB127 MC68HC0(7)05BXX adaptor board
• APB128 MC68HC05X32 adaptor board

Compatbile Accessories

• Autel G-BOX3
• Autel APB112
• Autel MaxiIM IMKPA

Package Content

• XP400 Pro Main Unit
• APB129–EEPROM Adapter
• APA002–EEPROM Socket
• APB125–Mercedes Infrared Collector
• APB103–MCU_PLCC52 Adapter
• APB104–MCU_FQFP64 Adapter
• APB105–MCU_FQFP80 Adapter
• APB106–MCU_FQFP112 Adapter
• APB107–MCU_FQFP144 Adapter
• APB108–MCU_FQFP176 Adapter
• APB109–MCU_FQFP32 Adapter
• APB110–MCU_FQFP48 Adapter
• APB111–MCU_SO28 Adapter
• APA101–Spare Signal Cable
• APC101–USB Cable (Standard USB–Type B USB)
• APA103–EEPROM Clamp
• APA107–ECU Cable
• APA108–MCU Cable
• APA109–MC9S12 Cable
• Dupont Line
