Hantek 2D82 AUTO II
Code: 2625Product detailed description

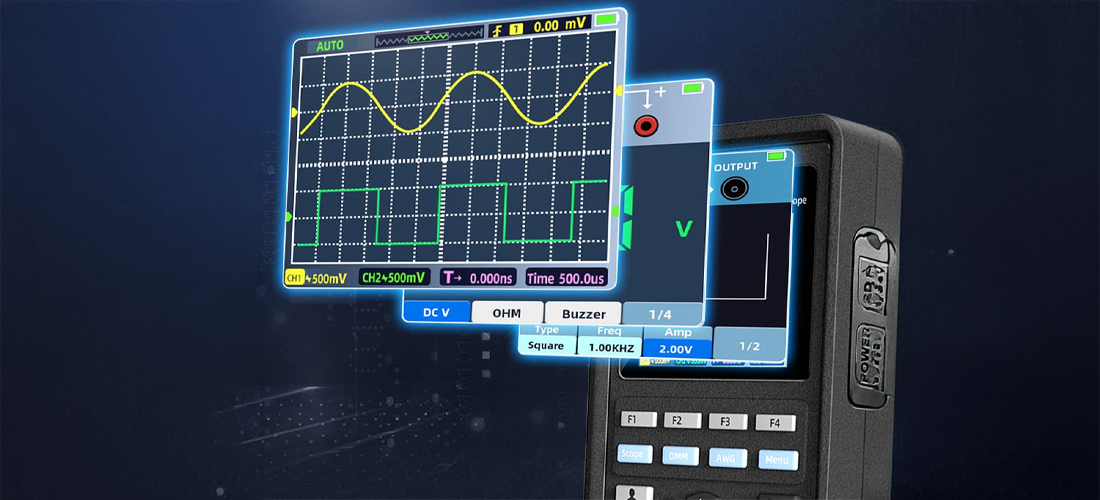

The Hantek 2D82 is a multifunctional device which was designed specifically for automotive use. It integrates an oscilloscope, waveform generator, and multimeter, while also including specialized diagnostic features. This portable oscilloscope operates on battery power and is rechargeable via USB Type-C cable (included in the package).
Main Features
- Ignition diagnostics
- Air in-take diagnostics
- Injector diagnostics
- Sensor diagnostics
- Bus diagnostics
- Charge diagnostics
Specifications
| Oscilloscope function | |
| Bandwidth | 80 MHz |
| Channels | 2 |
| Sample rate | 250 MSa/s (single-channel), 125 MSa/s (dual-channel) |
| A/D converter | 8 bit |
| Vertical scale | 10 mV/div - 10V/div |
| Waveform generator function | |
| Frequency | Sinus(1Hz - 25MHz), Square(1Hz - 10 MHz), Ramp(1Hz - 1 MHz), Trapezoid(1Hz - 5 MHz) |
| Sampling | 250 MSa/s |
| Output Impedance | 50 Ω |
| Multimeter function | |
| Max resolution | 4000 counts |
| Max input voltage | AC 600V, DC 800V |
| Max input current | AC 10A, DC 10A |
| Input Impedance | 10 M Ω |
| Other specifications | |
| Display | 2,8 Inch TFT (320x240) |
| Battery | 2 x 2600mA |
Package Contents
- Hantek 2D82 AUTO II
- 2x 20:1 Attenuator
- 2x Auto ignition probe
- 1x Large crocodile clips
- 2x Auto test leads
- 1x 6-Way breakout leads 1.5m
- 1x 6-Way breakout leads 2.8mm
- 1x Needle probe set
- 2x COP extension cord
- 1x Multimeter probe
- 2x Crocodile clip leads
- 1x Toolkit
- 1x Type C lead
- 1x 5V/2A USB Charger
