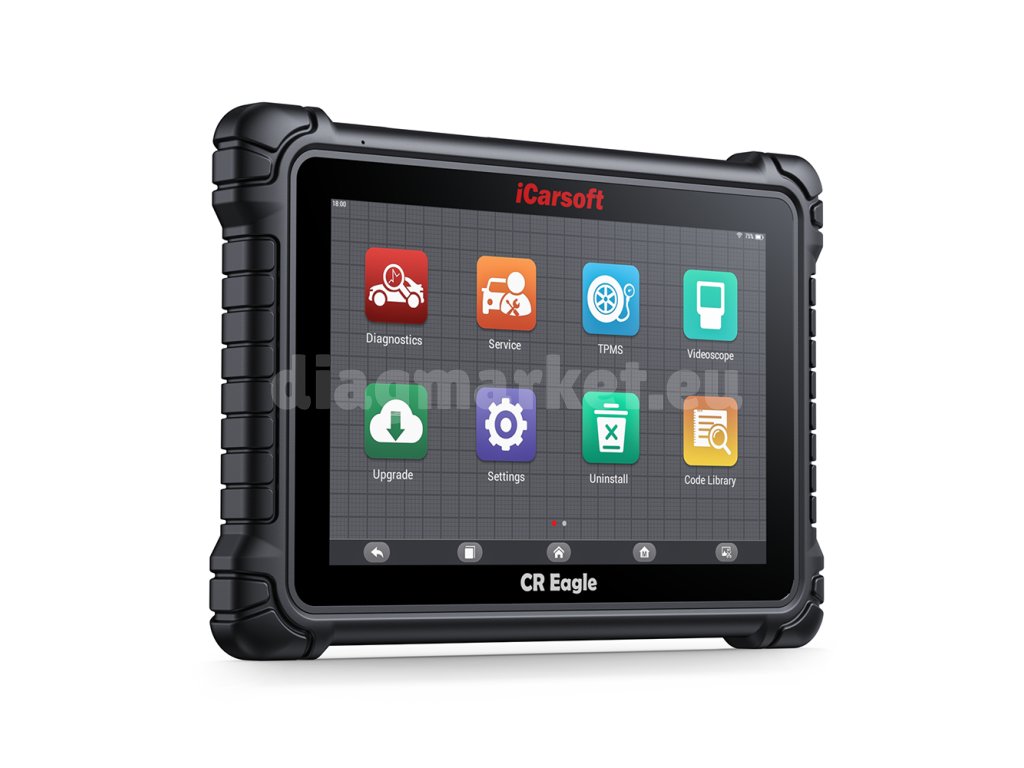

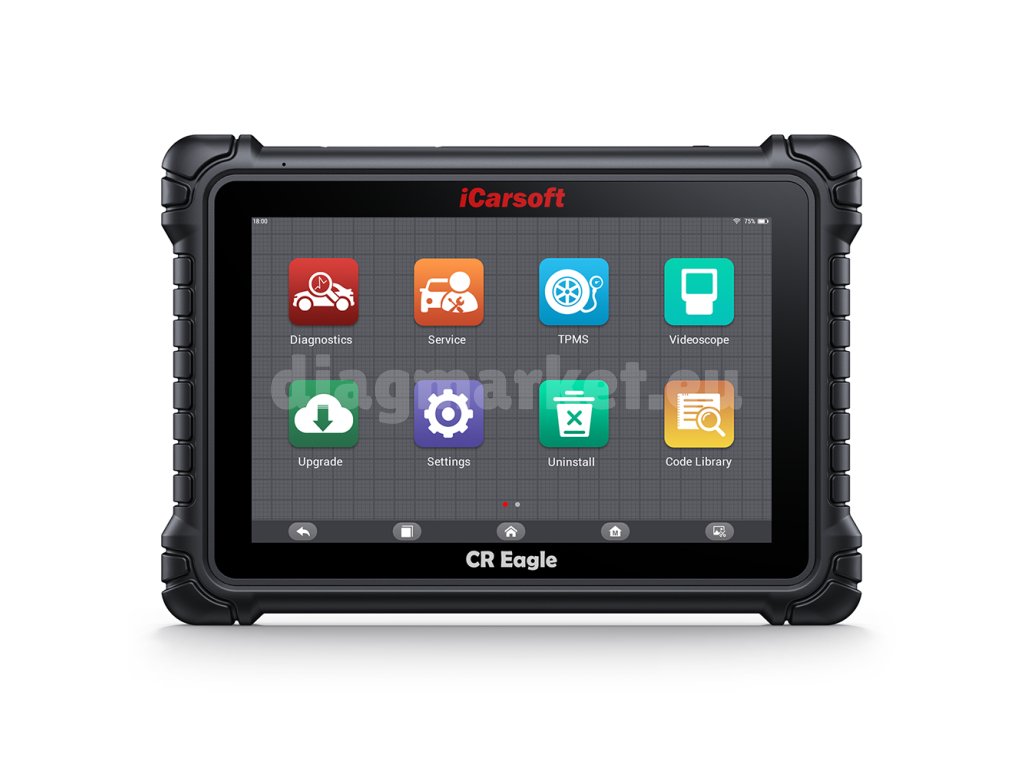

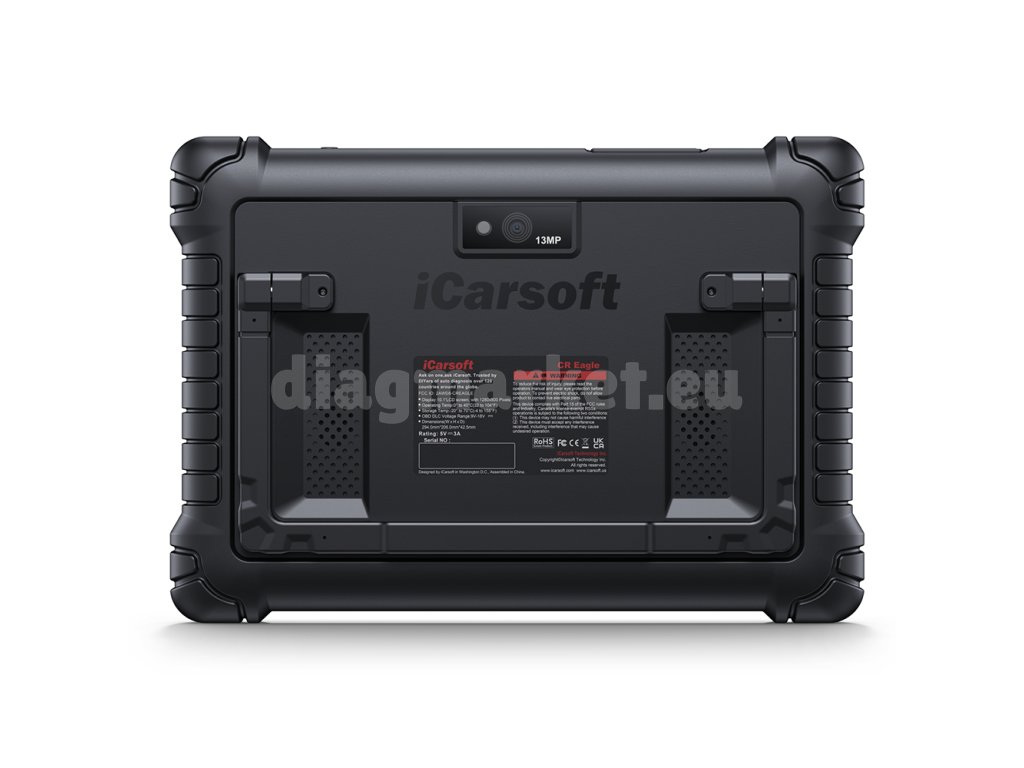

iCarsoft CR Eagle

Product detailed description

The iCarsoft CR Eagle offers complete diagnostics for most European, Asian and American brands in conjunction with advanced service functions. The CR Eagle connects to all units, can read the readiness code and also offers over 38 service functions - for example, it can reset service intervals, diagnose and regenerate DPF, perform basic throttle settings, reset automatic transmission adaptations, basic TPMS diagnostics, register the battery, perform injector coding, key and remote control coding and many other tasks. The device supports actuator tests, adaptations and coding.

In addition to the engine unit , automatic transmissions, ABS, airbags, dashboard and other units in the car are also supported. The scanner has a built-in battery with long battery life. Free and unlimited updates are included in the price of the device. A great advantage is wide language support. CR Eagle Diagnostics also supports access to FCA Group units protected by the Security Gateway Module (SGW) without the need for a bypass - a subscription to the car company is required. Support for CAN-FD communication protocol.

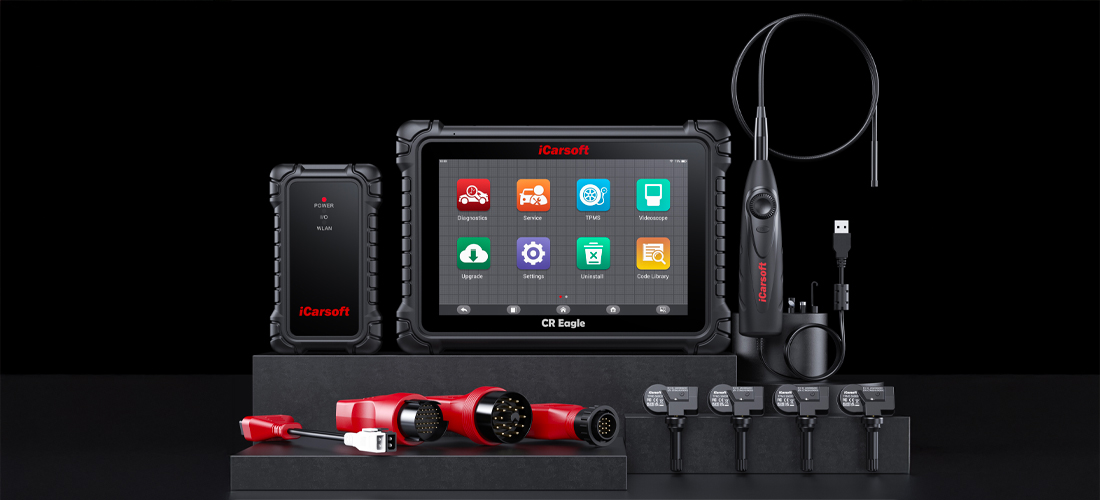

In addition to the diagnostic tablet and wireless adapter itself, the CR Eagle also offers integrated TPMS valve coding, 4 TPMS valves, a handy gooseneck endoscope and adapters for older Mercedes and BMW cars, as well as a 14-pin adapter for the Mercedes Sprinter

TPMS Functions

Diagnostics is able to activate/read 99% of known TPMS sensors, read and clear TPMS errors, display manufacturer specific valve coding procedures, can also handle sensor learning even when replacing original sensors with Autel MX replacements.

• check - activate TPMS sensors to display ID, tire pressure, tire temperature, battery status and sensor location.

• diagnostics - displays system status, reads and clears any errors

• coding - when replacing original sensors with Autel MX sensors, can code these:

• copy by activation - will program the sensor ID obtained from the sensor

• copy via OBD-II - will program the sensor ID obtained from the TPMS unit

• copy by input - will allow manual input of the original sensor ID

• auto create - will create a random ID to program the sensor

• TPMS learning - this function is designed to program the newly created sensor ID into the TPMS unit - 3 ways of implementation if the original part number is known , this function allows Autel MX sensors to be activated and programmed. This method allows up to 20 sensors to be coded at once.

Updates

An exclusive advantage of the iCarsoft CR Eagle is that it provides free updates.

Why choose iCarsoft CR Eagle?

• offers all common diagnostic and service functions
• free lifetime updates
• premium accessories included
• large and clear display

Supported vehicles (1996 - 2022)

European

Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, Ford, Ferrari, Fiat, GAZ, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, VAZ, Volkswagen, Volvo, Borgward, Aston Martin (extra charge)

American

Buick, Cadillac, Chevrolet, Dodge, Ford, GM, Jeep, Lincoln, Tesla (extra charge)

Asian

Acura, Daewoo, Daihatsu, HM, Holden, Honda, Hyundai, Ikco, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Samsung, Saipa, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, Vinfast and Chinese brands

Supported languages

English, Czech, Danish, Dutch, Finnish, French, German, Hungarian, Italian, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish.

Hardware specifications

• Operating system: Android 10.0

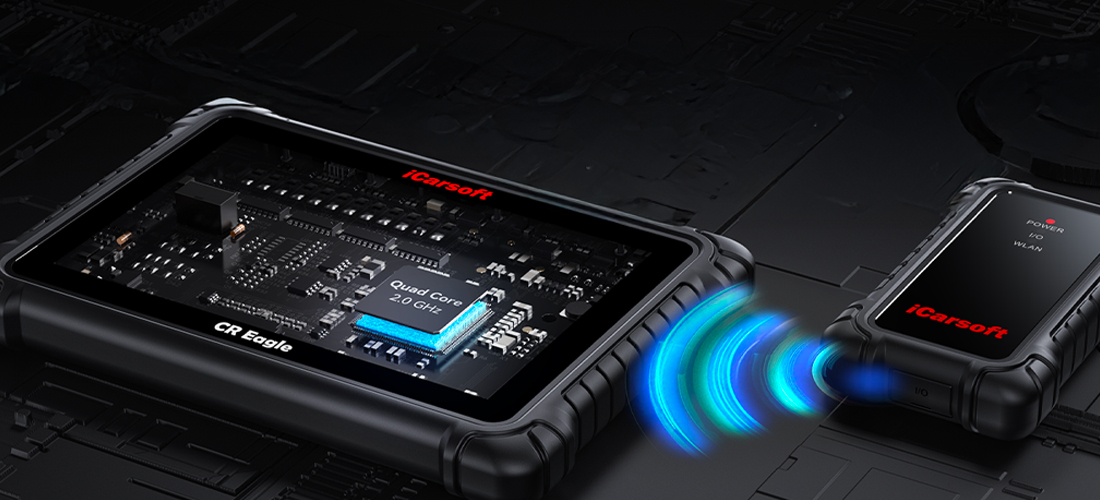

• Processor: 2.0 GHz quad-core processor
• 4 GB / 128 GB
• Display: 10.1" touchscreen with 1280x800 pixel resolution
• operating temperature: 0 - 50 °C
• Storage temperature: -20 - 70°C
• Operating humidity: 5 - 95% (non-condensing)
• dimensions: 294 x 206 x 43 mm

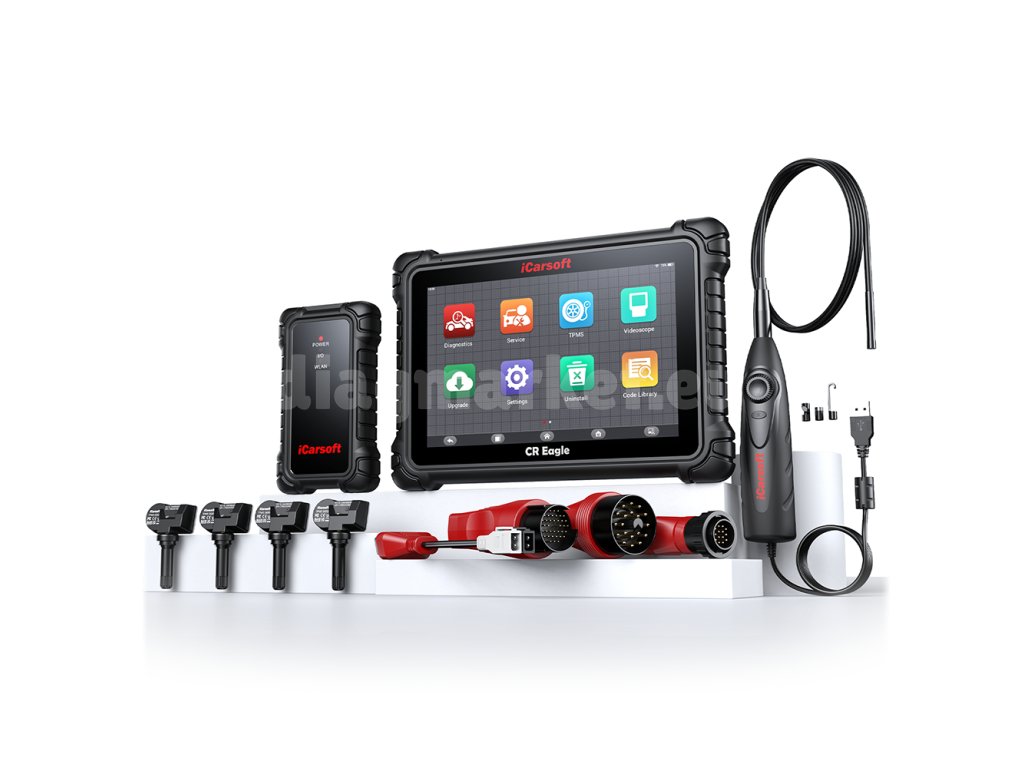

Package Content

• iCarsoft CR Eagle
• Wireless VCI
• OBD-II cable
• charger
• charging cable
• plastic case
• USB endoscope
• 4 TPMS valves
• 38-pin adapter for older Mercedes cars
• 20-pin adapter for older BMW cars
• 14-pin adapter for older Mercedes Sprinter cars
• 2x2 adapter for older VAG vehicles
• user manual
