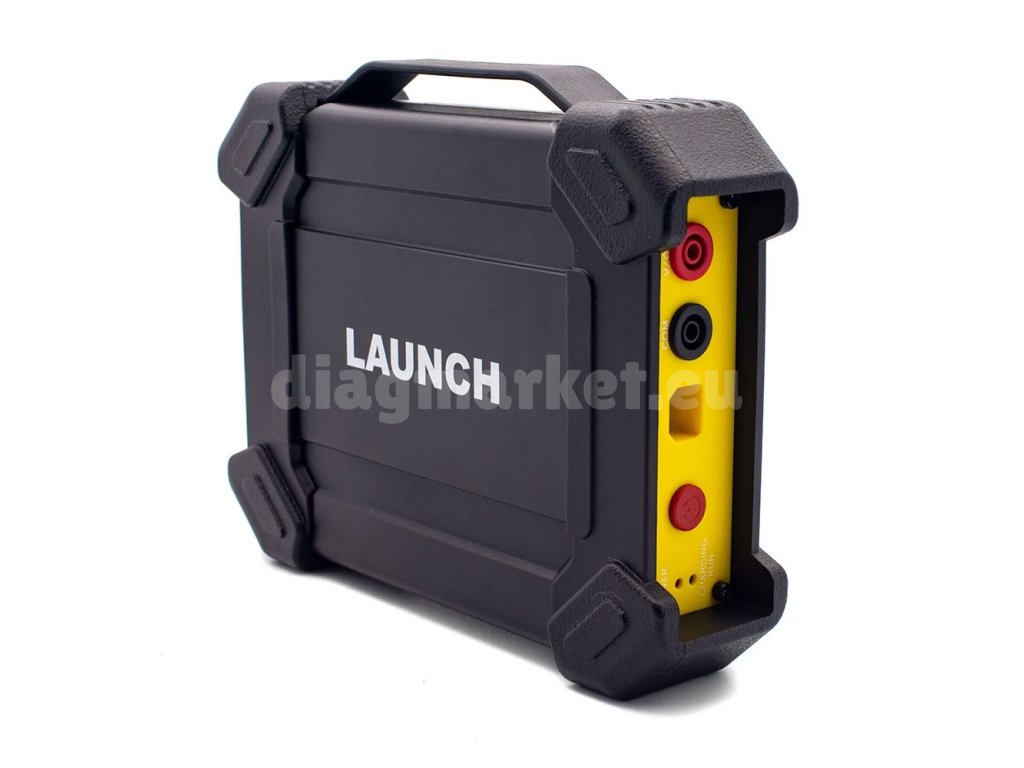

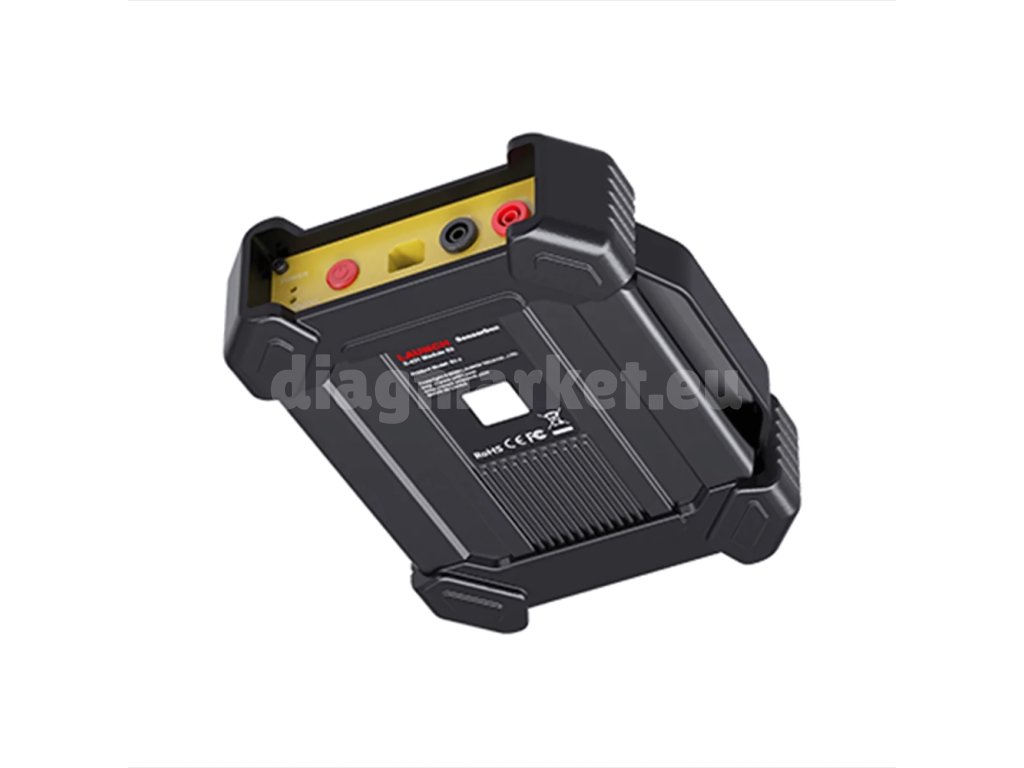

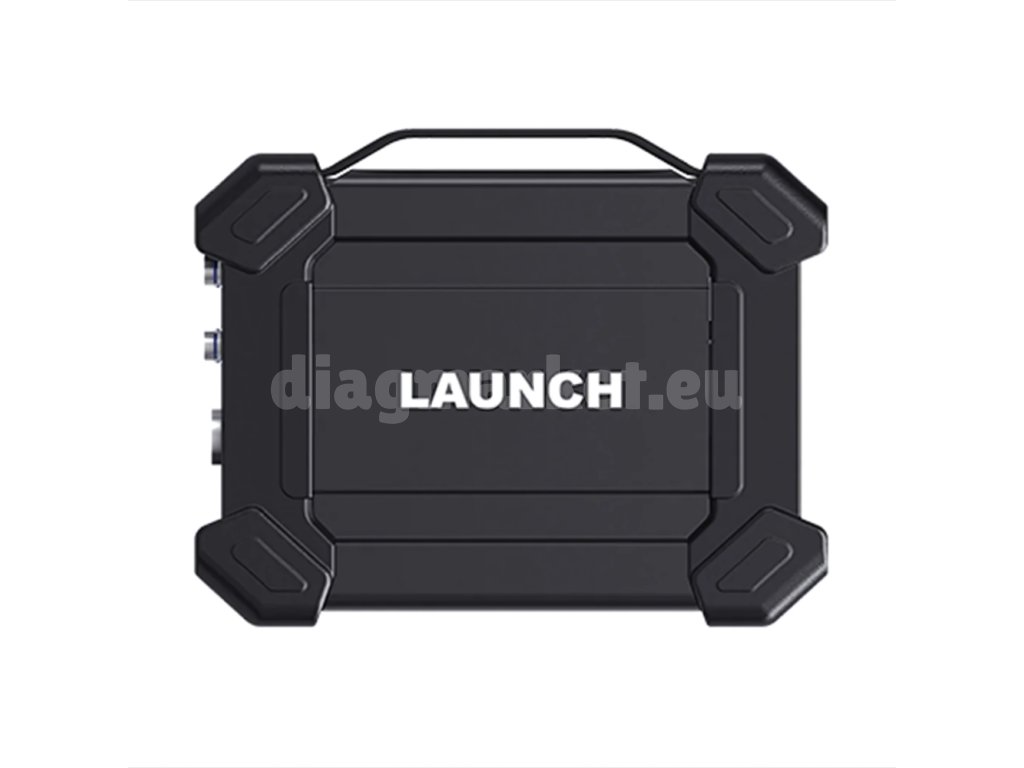

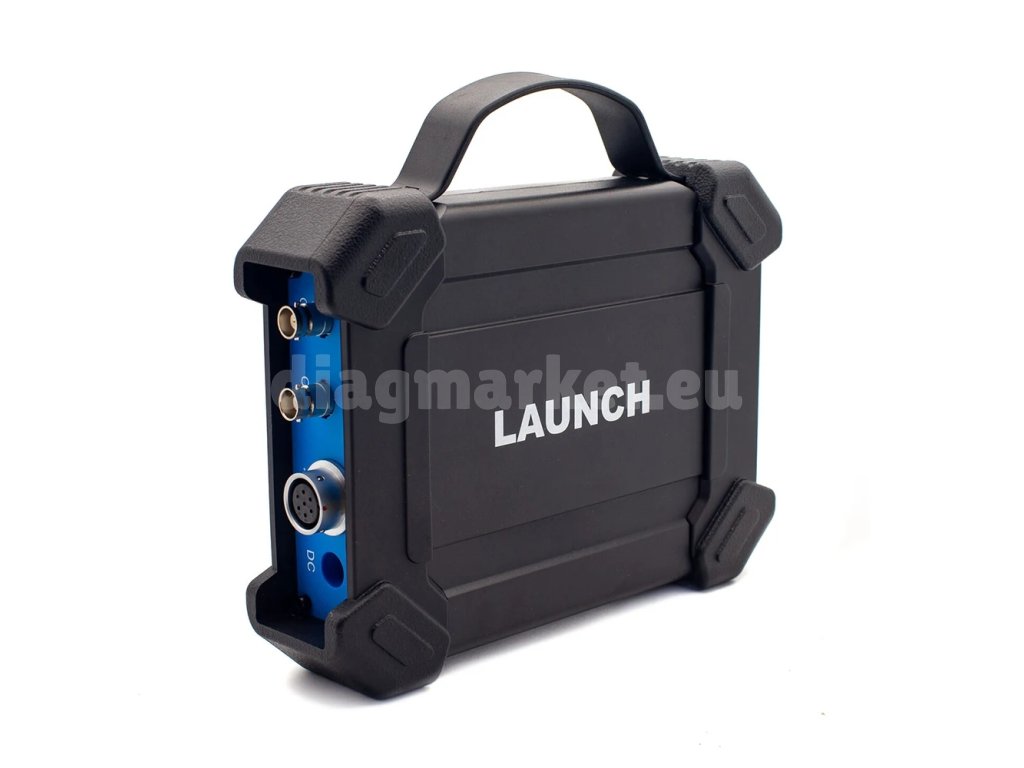

Launch S2-2 Sensor Box

Product detailed description

Launch S2-2 Sensor Box is a module specifically designed for diagnosing, testing and simulating most vehicle sensor failures. With its help, users can easily and quickly diagnose and simulate the sensor for quick troubleshooting of the control unit. The device also supports multimeter functions. Through this function, users can test voltage, resistance and capacitance. The module cannot be used alone, must be used together with Launch diagnostic tools that are compatible with this module, such as the CRP919X BT, PROS V5.0, DYNO, V+, APEX, V+ Elite, PRO 5, PAD VII.

Main Features

• Check whether the ECU itself is working or not
• Supports manual entry of progress data.
• Simulate the working status of sensors without replacing parts
• Simulate some special working conditions of sensors without replacing parts
• Can be used as a multimeter to measure resistance, AC/DC voltage, capacitance, frequency and pulse signals etc.
• One click to enter the intuitive menu of sensor, actuator, defined/drawn waveform, time waveform, multimeter, system settings
• Frequency measurement

Sensor

The instrument is equipped with a "Sensor" function, which is designed for measuring and timing. It is used to simulate the input signals of the car's electronic control system, and the car's computer adjusts the engine's operating condition according to these parameters.

Action Link

It is used to simulate the output control signal of the car's electronic control system to assess the working conditions of the car's actuators.

Multimeter

Through this function, users can test voltage, resistance and capacitance.

Parameters

• Waveform: There are 9 waveforms to choose from: forward sine wave, backward sine wave, forward square wave, backward square wave, medium voltage, straight line, high/low voltage straight line, triangle wave, and trapezoidal wave.
• Frequency: Set the frequency of the selected waveform.
• Amplitude: Set the amplitude of the selected waveform.
• Offset: Set the offset of the selected waveform.
• Phase: Set the phase of the selected waveform.
• Duty cycle: Set the duty cycle of the selected waveform.
• Signal Sync: Can cause CH1 and CH2 to transmit signals simultaneously.

Manual rendering

• Total number of frames: 1-3 (optional). Specifies the total number of output points
• In general, a single waveform consists of 100 points. Values 1-3 indicate that you can select 100, 200 or 300 points to create a waveform.
• Edit frame: used to edit the frame: You can edit one frame or edit all
• Waveform: You can select a preset waveform and place it in the manual drawing area.
• Frequency: If you want to display the wavelength, you can use the Frequency: frequency of one frame (for an output of 3 frames, the total frequency is set to frequency/3).
• Amplitude: The amplitude of the output waveform
• Shift: Shift of the output waveform
• Time waveform: This function is used to adjust the timing waveform (crankshaft + camshaft) of the motor.

Technical parameters

Sensor Module

• Number of channels: 2
• Accuracy: 1
• Amplitude range: 1: 0 - 20 V
• Maximum output current: 20 mA
• Pre-defined frequency range: 0 - 20 kHz
• Square signal pulse frequency: 0 - 15 kHz
• Square wave signal duty cycle: 0 - 100%
• Power: Sensor simulator output/max. current 20 mA (output is battery powered) - solenoid drive, ignition coils/output current 2A (external power supply)
• USB: USB2.0 type B (with charging and power supply/5V function)
• DC voltage simulation support
• Support fixed frequency simulation
• Support simulation of predefined waveforms
• Support hand-drawn waveform simulation
• Signal generator interface: 2
• Port for external power supply: 1
• Solenoid Interface: 1
• Multi-meter interface: 2
• Operating temperature: 1: 0 °C - 50 °C
• Storage temperature: -30 °C - 70 °C

Multimeter

• DC voltage: 0 V - 700 V
• AC voltage: 0 V - 700 V
• Resistance: 0 Ω - 40 MΩ
• Capacitance: 0 F - 100 µF (maximum measurement time 30 s)
• Diode: 0 V - 1.5 V
• Continuity Detection: Sounds below 30 Ω

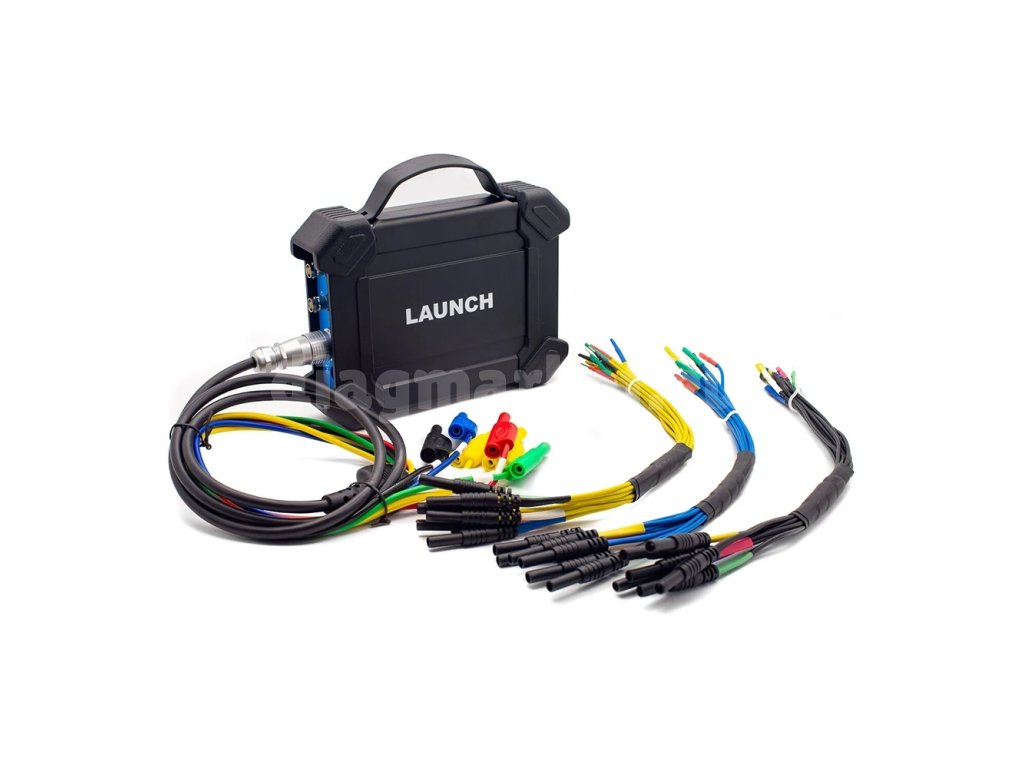

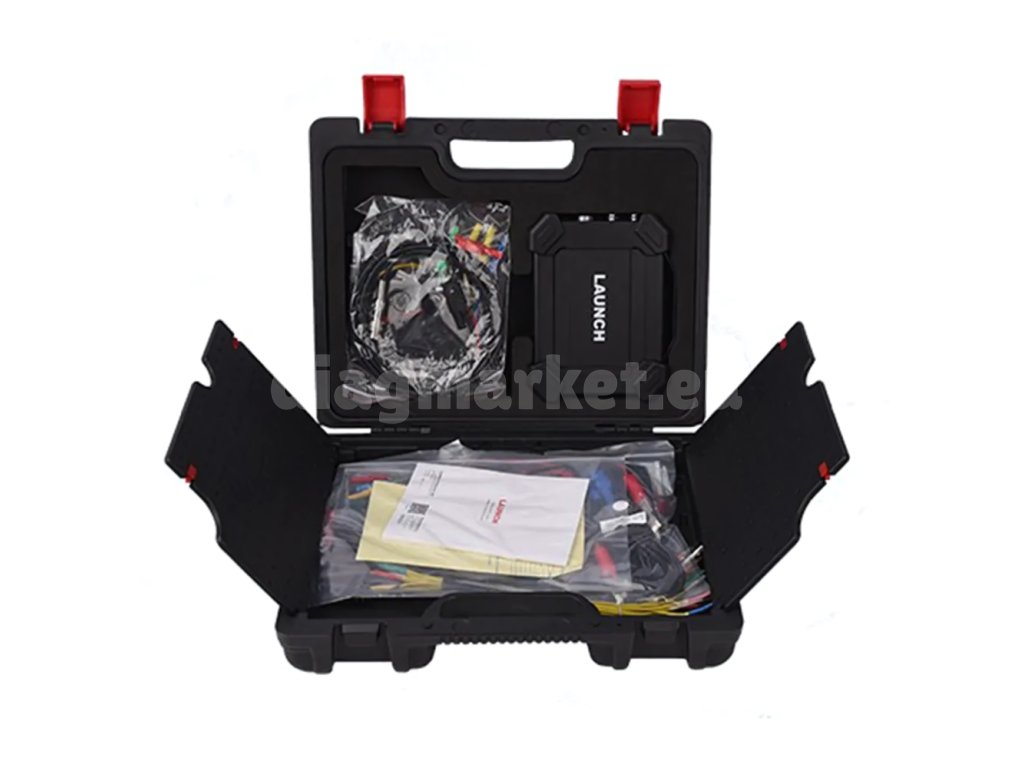

Package Content

• Launch S2-2
• 2x HT30 measuring leads
• 7-pin interface adapter cable
• cable with battery terminals
• USB cable
• 3x 6-way splitter cable
• 2x multimeter test pen (black + red)
• hook probe set
• power adapter
