Launch X431 Euro 2025
Code: 1566/GOL3 1566/GOL2 1566/GOL 1566/SIL3 1566/SIL2 1566/SIL 1566/BRO3 1566/BRO2 1566/BRO Choose variantProduct detailed description
Launch X431 Euro is Launch Europe's new top-of-the-range model supporting most of the features of Launch products and bringing more modern and powerful HW and enhanced SW. It provides connectivity to all units of most European, Asian and American vehicles in conjunction with more than 60 service functions, such as connection to all units, readiness code reading, service interval reset, DPF diagnostics and regeneration, basic throttle settings, automatic transmission adaptation reset, basic TPMS diagnostics, battery registration, key and remote control coding, injector coding and much more.
The new SmartLink C 3.0 diagnostic adapter delivers up to 10x faster communication. With integrated J2534 support, it can perform the same functions as original dealer tools such as programming, online programming, adaptation and coding (some functions require a software subscription from the vehicle manufacturer). The VCI enables wireless high-speed communication with almost any unit and supports new protocols such as CAN-FD and DoIP. The device supports actuator testing, adaptation and coding.Diagnostics Can unlock secure access on Mercedes, Renault and FCA and VAG vehicles.
Diagnostic Functions
- Control unit identification
- Reading fault codes of all units
- Clear fault codes of all units
- Display live data
- Active tests
- Adaptation
- Coding
- Online coding
- Programming
- Online programming
60+ Service Functions
- Service intervals reset
- ABS bleeding
- Injector coding
- Steering wheel angle sensor reset
- Reset of automatic transmission adaptations
- Battery registration
- TPMS reset
- Electric parking brake handling
- Throttle basic settings
- Air suspension calibration
- Coolant bleeding
- Doors and windows adjustments
- Adaptive lights calibration
- adBlue reset
- NOx sensor reset
- Start/Stop reset
- GPF replace and regeneration
- DPF replace and regeneration and much more...
OBD-II Diagnostics
- reading engine fault codes - P0, P2, P3, U0 and manufacturer specific codes P1, P3, U1 - permanent and temporary faults
- clearing engine fault codes
- extinguishing emission warning light (MIL)
- live engine data
- freeze frame engine data
- I/M Readiness test
- lambda sensor test
- EVAP system test
- battery test
- display vehicle information (VIN, CVN and more)
- OBD-II fault code database
- support for most OBD-II test modes including CAN, ISO9141, KWP2000, J1850 VPW, J1850 PWM protocols
Software
The instrument can be purchased with one of 3 software packages:
Bronze - full diagnostics, complete SGW package, VAG coding and customization guide, ADAS dynamic calibration
Silver - full diagnostics, complete SGW package, VAG coding and customisation guide, ADAS dynamic calibration, online functions, CarSET Pro workshop data base
Gold - full diagnostics, complete SGW package, VAG coding and customisation guide, ADAS dynamic calibration, online functions, CarSET Ultimate workshop data base
All packages can be purchased for 1, 2 or 3 years.
Updates
When purchasing, you can choose a Bronze, Silver or Gold SW package for 1, 2 or 3 years. After this period expires, you must renew your SW subscription to use it.
Why Choose Launch X431 Euro?
- offers all diagnostic functions
- most powerful hardware and software
- more service functions than any other Launch tool
- revised design with larger display
- VCI compatible with J2534 with OEM software support
- option to select an individual software package
- workshop data included (range according to selected software package)
Supported Vehicles (1996 - 2025)
European
Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, Ford, Ferrari, Fiat, GAZ, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, VAZ, Volkswagen, Volvo, Borgward, Aston Martin (at extra cost)
American
Buick, Cadillac, Chevrolet, Dodge, Ford, GM, Jeep, Lincoln, Tesla (surcharge)
Asian
Acura, Daewoo, Daihatsu, HM, Holden, Honda, Hyundai, Ikco, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Samsung, Saipa, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, Vinfast and Chinese brands
Supported Languages
English, Arabic, Danish, Dutch, English, Finnish, French, German, Hungarian, Italian, Japanese, Korean, Persian, Polish, Portuguese, Romanian, Russian, Serbian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish, Czech
Hardware Specifications
- Operating System: Android 13
- processor: 8-core 2.0 GHz
- memory: storage: 12 GB / 512 GB
- display: 13.6" touchscreen with 2560x1600 px resolution
- operating temperature: 0 - 50°C
- storage temperature: -20 - 70°C
- operating humidity: 5 - 95% (non-condensing)
- Dimensions: 377 x 246 x 35 mm
Package Content

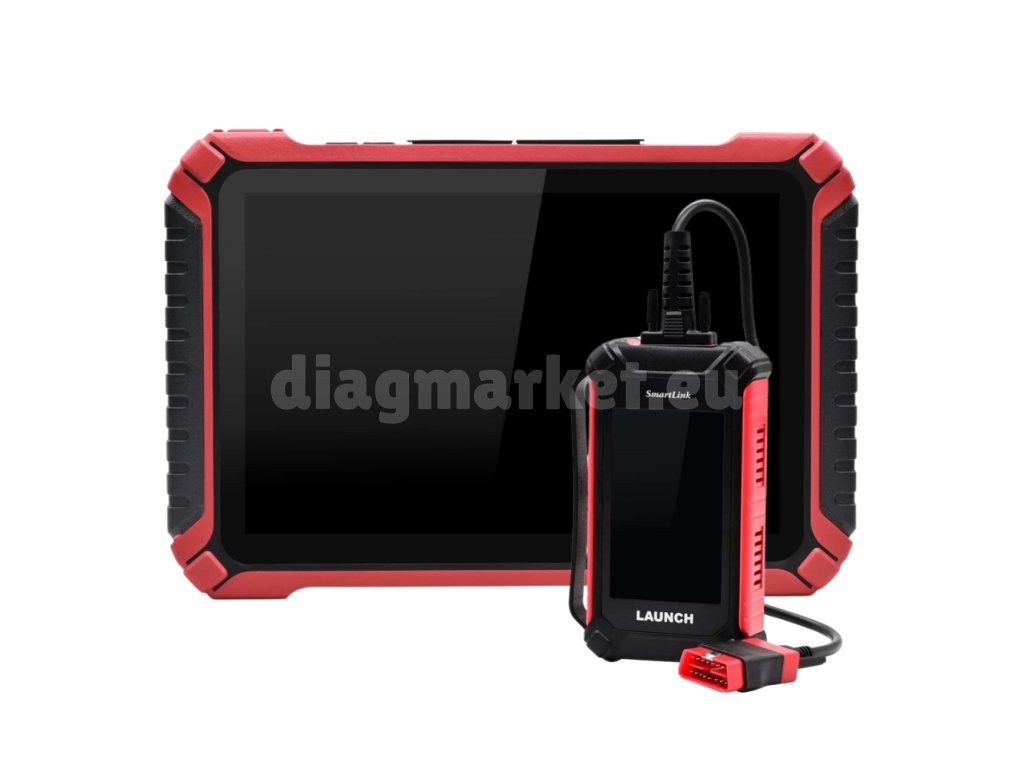

- Launch X431 Euro
- SmartLink C3.0 diagnostic adapter
- OBD-II cable
- charger
- charging cable
- SW package of your choice
- User manual
