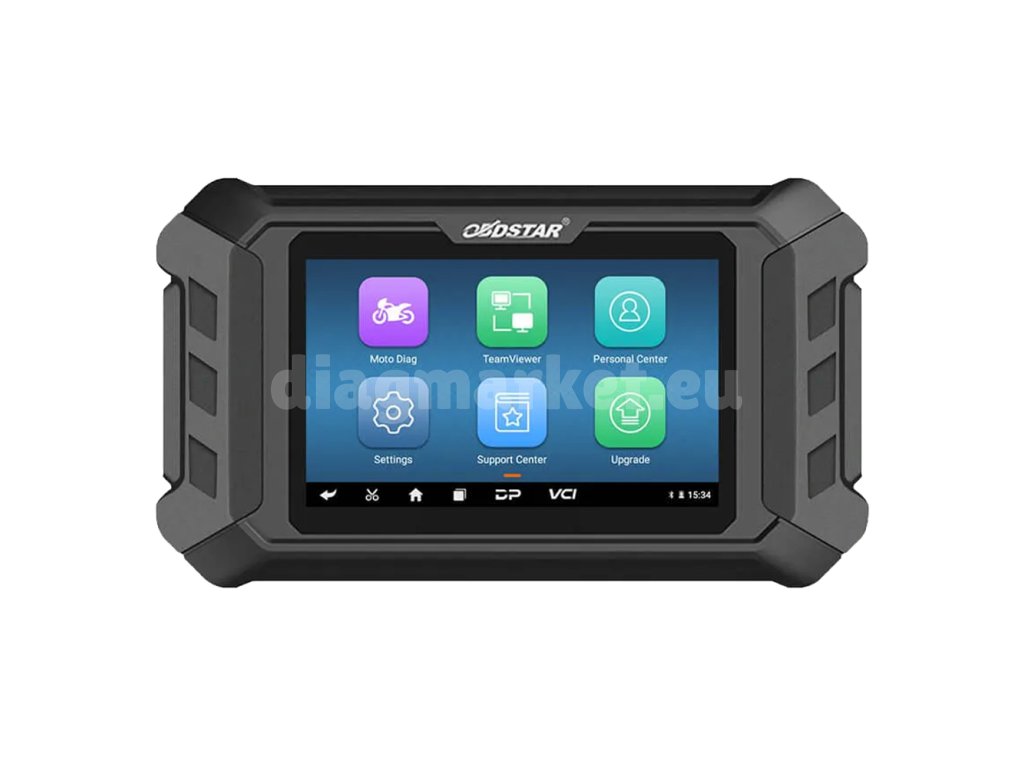

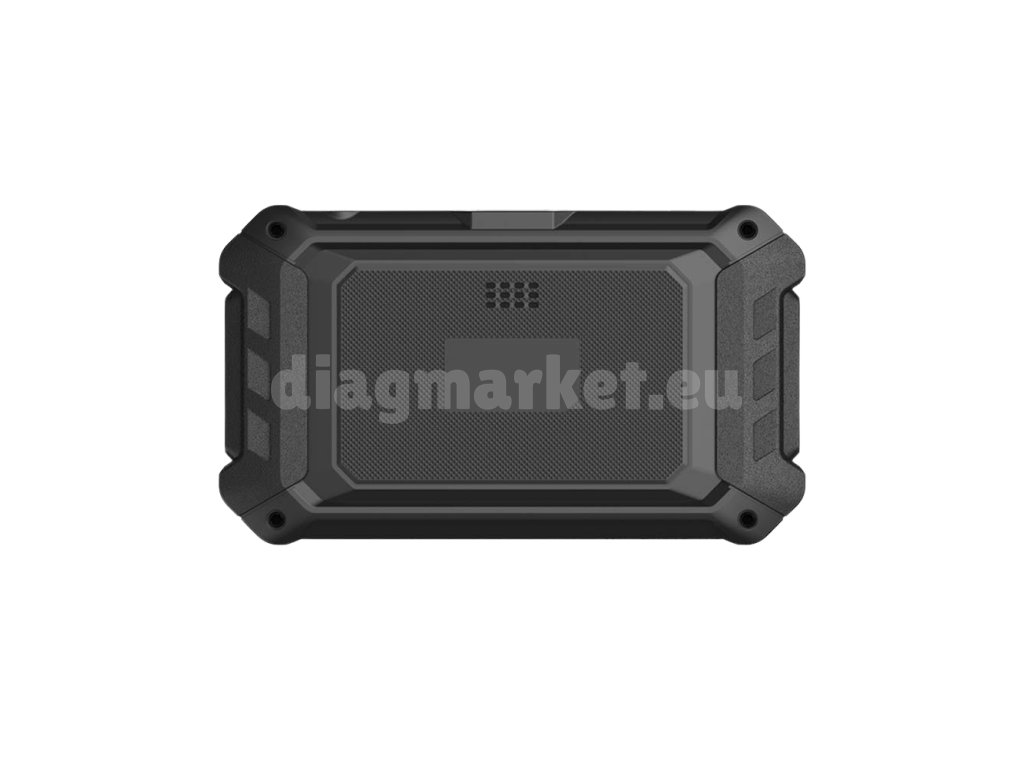

OBDStar MS50 STD

Product detailed description

OBDStar MS50 Standard offers intelligent, professional-level diagnostics, including comprehensive diagnostic and service functions. The instrument will detect faults, provide a technical bulletin, help with monitoring readings, diagnostic socket location and other features to help you diagnose accurately and efficiently. A great benefit is the wealth of supporting technical data such as interactive circuit diagrams, troubleshooting guides and more. Adapters are included for connection to selected motorcycle brands.

Diagnostic Functions

• Identification of all control units
• Reading of fault codes for all units
• Erase error codes for all units
• Live data display
• Tests of actuators
• Adaptation
• Coding

Service Functions

• Reset service intervals
• ABS settings
• Idle speed adjustment
• TPMS reset
• Reset transmission adaptations
• Basic throttle settings and more

Update

Get free updates for 1 year with purchase. After the free updates expire, no further updates are required. New updates can be purchased after the expiration of the existing ones at a better price. Updates can also be purchased at a later date after missing a certain period, however the price may be higher.

Why Choose OBDSTAR MS50 STD?

• Diagnostics available for selected brands
• Complete diagnostic and service functions
• accessories included

Supported Motorcycles

• Asian: AEON, BAJAJ, BENELLI(DSK), HARTFORD, HERO, HONDA, HYOSUNG, KAWASAKI, KYMCO, PGO, ROYAL ENFIELD, SUZUKI, SYM, TVS, YAMAHA
• Europe: APRILIA, BENELLI, HM, HUSQVARNA, KTM, PIAGGIO, ROYAL ALLOY, VESPA
• Chinese: CHINA ABS, CHINA ENGINE, CFMOTO, HAOJUE, LINHAI, QJBENELLI, SHINERAY, ZONTES
• American: ACELLERA

Supported Languages

The device supports English language only.

Hardware Specifications

• Operating system: Android 5.1.1
• Processor: 4-core processor
• Display: 5" touch screen with 800 x 480 pixel resolution
• Operating temperature: -20 - 55 °C
• Storage temperature: -20 - 70°C
• Operating humidity: 5 - 95% (non-condensing)
• Battery capacity: 2600 mAh

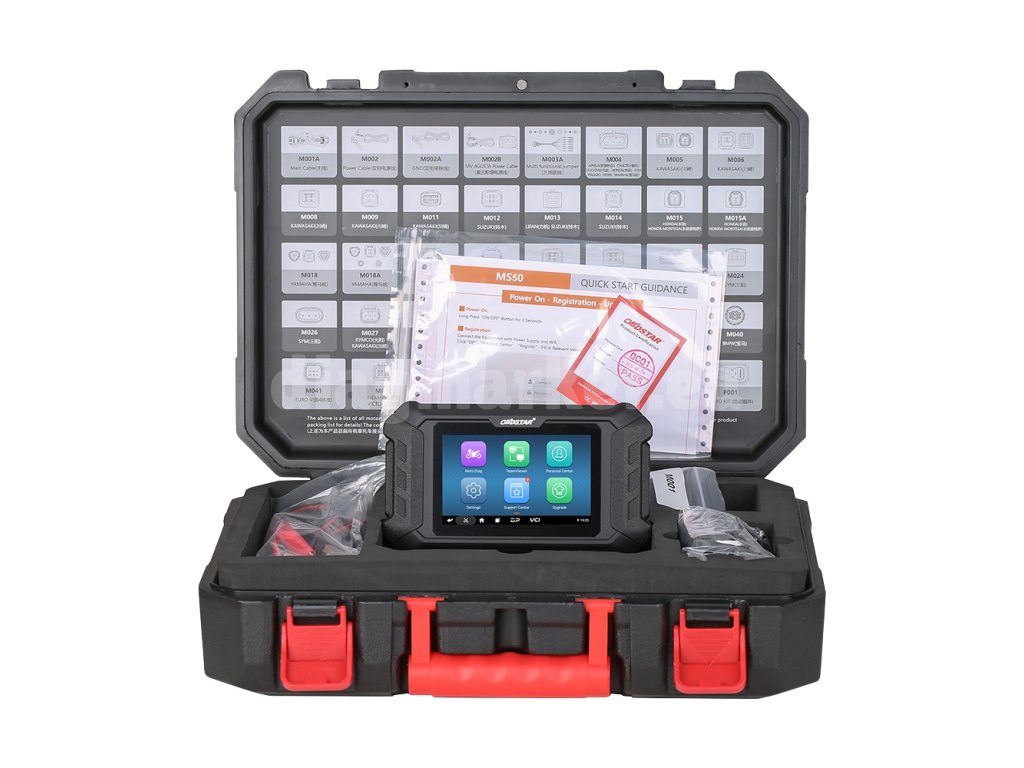

Package contents

• OBDSTAR MS50 STD
• OBD-II cable
• Power cable
• Anchoring cable
• Multifunction jumpers
• 3-pin adapter for Aprilia, Ducati, Honda, KTM, Piaggio, Vespa, Yamaha motorcycles
• 4- and 6-pin adapter for Kawasaki motorcycles
• 6-pin adapter for Suzuki motorcycles
• 4-pin adapter for Honda motorcycles
• 3-, 3- and 4-pin adapter for Yamaha motorcycles
• 6-pin adapter for KTM motorcycles
• 6-pin adapter for AEON, Benelli motorcycles
• 3-pin adapter for SYM motorcycles
• 3-pin adapter for Kymco, Kawasaki motorcycles
• 6- and 6-pin adapter for PGO
• 6-pin adapter for Hartford
• Charger
• User manual
