Otofix IM2

Product detailed description

Key and Immobiliser Coding

The Otofix IM2  is the top model of the IM series of the Otofix brand, which is under the Autel manufacturer. It offers complete diagnostics for all units on most European, Asian and American makes of car, combined with advanced service features normally only available on diagnostics several times more expensive. Unlike cheap universal devices, it is not limited to diagnostics within the OBD-II standard. It can read readiness code, reset service intervals, diagnose and regenerate DPF, perform basic throttle settings, reset automatic transmission adaptations, TPMS diagnostics, register battery, perform injector coding, advanced key and remote coding and many other service functions. In addition, it has a guide for activating selected VAG functions and allows online coding (subscription to the manufacturer's system is required) and also supports actuator tests.

Included in the package is a diagnostic adapter that plugs into the vehicle's diagnostic socket and allows wireless communication with the diagnostic tablet.

In addition to the engine unit, automatic transmissions, ABS, airbags, dashboard and other units in the vehicle are also supported. The device has a built-in 15,000mAh battery. Updates for 2 years are included in the price of the device.

Key and Remote Encryption

• PIN/CS code reading (if all keys are lost)
• Key creation
• Learning keys and remote controls
• Immobiliser data backup and recovery
• Immobiliser unit reset, customisation, recovery and coding
• BMW FEM/BDC key learning and unit customization
• Learning VW/Audi/Seat/Skoda MQB keys, adding keys (48 transponder 96-bit), losing all keys
• Mercedes immo III generation - key learning, adding keys, encoding when all keys are lost
• Smart mode - learn keys automatically according to wizard
• Expert mode - advanced key learning
• System autodetection - make/model/year/system
• PIN/CS code reading - used when all keys are lost
• Key Decoding
• Remote learning
• Reset/adapt immobiliser unit
• Resetting/coding immobiliser unit
• Backup and recovery of immo data
• Learning keys and customising the Mercedes FEM/BDC unit
• Adding keys (even if all keys are lost) for VW/Audi/Seat/Skoda IMMO units - Generation III, IV and V
• Key learning BMW CAS4/3/2

Can generate and clone keys, read and erase EEPROM and Freescale 9S12 MCU. All operations are performed without connection to the car. A PC support application is included.

• Read and write transponder
• Read and write EEPROM
• Advanced MCU read and write
• Read and write to motor IC
• Read and write MC9S12 chip (with encryption)
• Read and write IC card
• Read and write Mercedes Infrared Key
• Remote control frequency detection
• Support application on PC

Diagnostic Functions

• Control unit identification
• Read error codes
• Erasing error codes
• Display of live data (possibility to merge data from different units clearly in one place)
• Active tests
• Customization
• Coding
• Online coding
• Hidden features unlocked on VAG vehicles (additional charge $69 for 1st year, additional years $10/year)
• VIN/mileage verification

40+ Service Functions

• Reset service intervals
• ABS venting
• Injector coding
• Calibration of steering wheel angle sensor
• Reset automatic transmission adjustments
• Battery reset
• Reset TPMS system
• Electric parking brake operation
• Basic throttle settings
• Calibrating the air suspension
• Coolant venting
• Adjusting doors and windows
• Adaptive light calibration
• AdBlue reset
• Reset NOx sensor
• Resetting the Start/Stop system
• GPF replacement and regeneration
• Replacement and regeneration of DPF and much more...

OBD-II Diagnostics

• Read engine fault codes - P0, P2, P3, U0 and manufacturer specific codes P1, P3, U1 - permanent and temporary faults
• Clear engine error codes
• Extinguishing the emission warning light (MIL)
• Live engine data
• freeze engine data
• I/M readiness test
• Lambda probe test
• EVAP system test
• Battery test
• Display vehicle information (VIN, CVN, etc.)
• OBD-II error code database
• Support for most OBD-II test modes including CAN, ISO9141, KWP2000, J1850 VPW, J1850 PWM protocols.

Instrument Updates

Includes free updates for 24 months. After the free updates expire, updates are no longer mandatory but can be purchased at any time.

Why choose Otofix IM2?

• Can perform all common diagnostic and service functions
• The device is equipped with a 10.1" display
• New generation wireless diagnostic adapter supports all protocols
• Includes adapter for advanced IMMO work
• Better than IM1 (has more diagnostic functions)

Supported Vehicles (1996 - 2024)

European

Abarth, Alfa Romeo, Audi, Bentley, BMW, Bugatti, Citroen, Dacia, Ford, Ferrari, Fiat, GAZ, Iveco, Jaguar, Lamborghini, Lancia, Land Rover, Maserati, Maybach, Mercedes, Mini, Opel, Peugeot, Porsche, Renault, Rolls Royce, Rover, Saab, Seat, Skoda, Smart, VAZ, Volkswagen, Volvo.

American

Buick, Cadillac, Chevrolet, Dodge, Ford, GM, Jeep, Lincoln, Tesla (extra charge)

Asian

Acura, Daewoo, Daihatsu, HM, Holden, Honda, Hyundai, Ikco, Infiniti, Isuzu, Kia, Lexus, Luxgen, Mahindra, Maruti, Mazda, Mitsubishi, MVM, Nissan, Perodua, Proton, Samsung, Saipa, Ssangyong, Subaru, Suzuki, Tata, Toyota, United Pakistan, Vinfast and Chinese brands.

Supported Languages

English, Arabic, English, French, Hebrew, Dutch, Italian, Japanese, Korean, German, Farsi, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Traditional Chinese, Turkish, Thai, Vietnamese, Simplified Chinese, Czech.

Hardware Specifications

• Operating System: Android 10.0
• Memory - storage: 4 GB / 128 GB
• Display: 10.1" touchscreen display with 1920x1200 pixel resolution
• Operating temperature: 0 - 50°C
• Storage temperature: -20 - 60°C
• Operating humidity: 5 - 95% (non-condensing)
• Dimensions: 274 x 180 x 18 mm

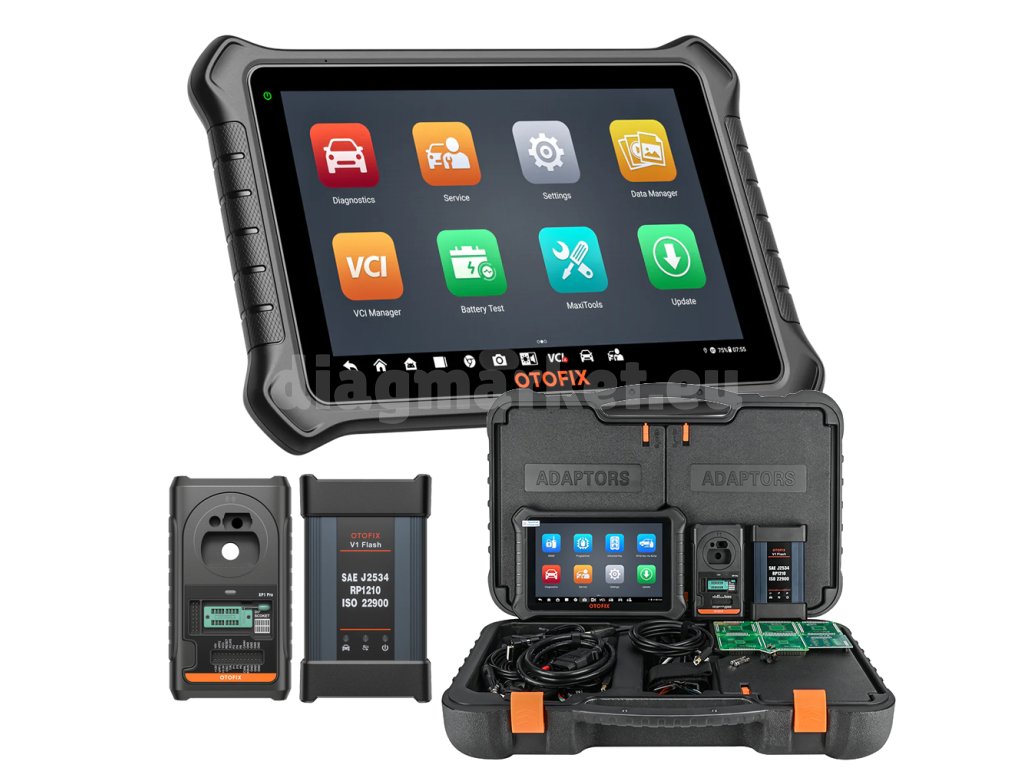

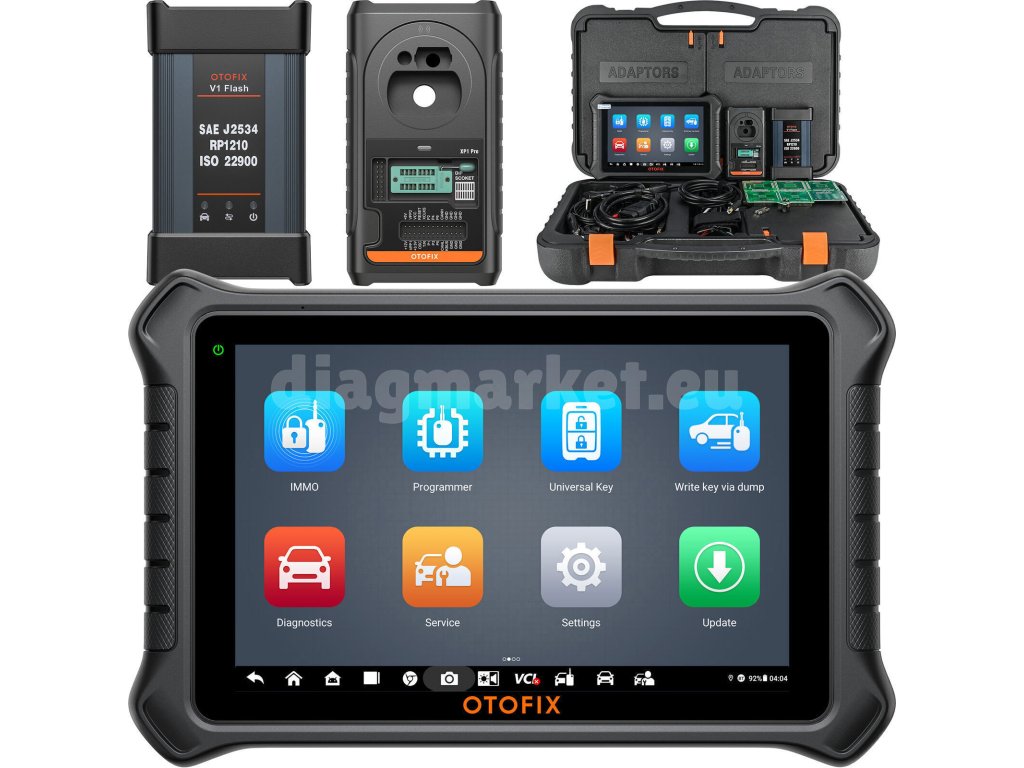

Package Content

• Otofix IM2
• Diagnostic adapter for wireless communication
• USB cable
• Power adapter
• Practical carrying case
• English user manual
• AAC001
• APC101 (USB Cable)
• APB129 (EEPROM Adapter)
• APB125 (Mercedes Infrared Collector)
• APB104 (MCU_FQFP64)
• APB105 (MCU_FQFP80)
• APB106 (MCU_FQFP112)
• APB107 (MCU_FQFP144)
• APB108 (MCU_FQFP176)
• APB109
• APA002 (EEPROM Socket)
• APA101 (Signal Cable)
• APA103 (EEPROM Clamp)
• APA107 (ECU Clamp)
• APA108 (MCU Clamp)
• APA109 (MC9S12 Clamp)
• USB to Ethernet Adapter
