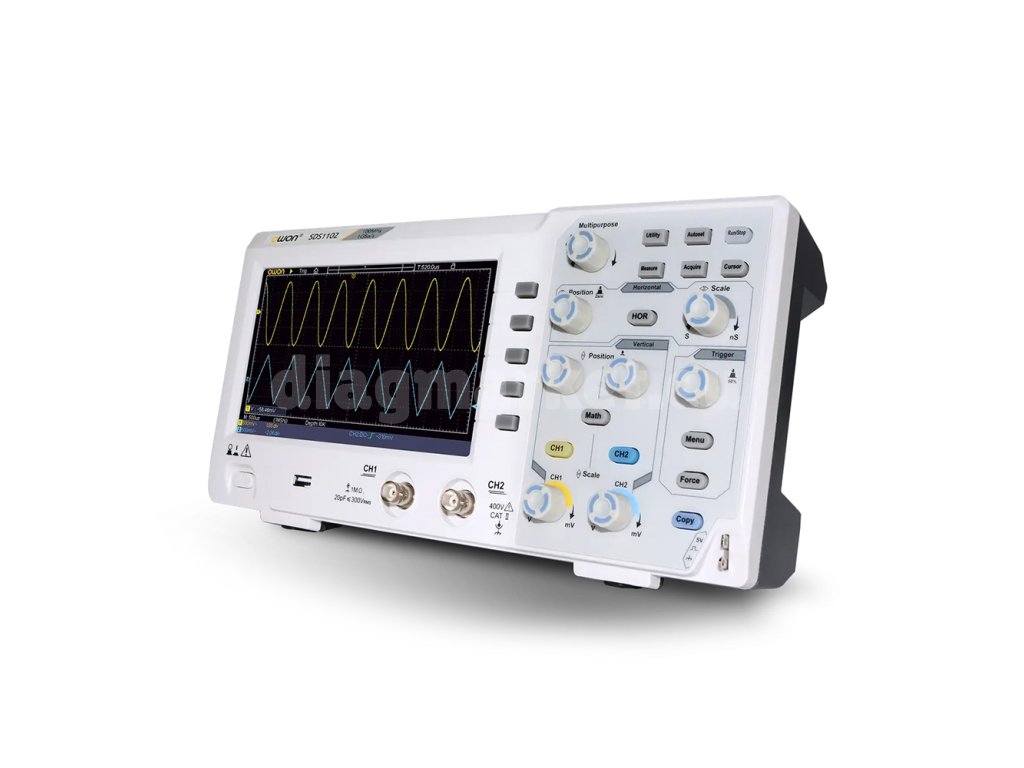

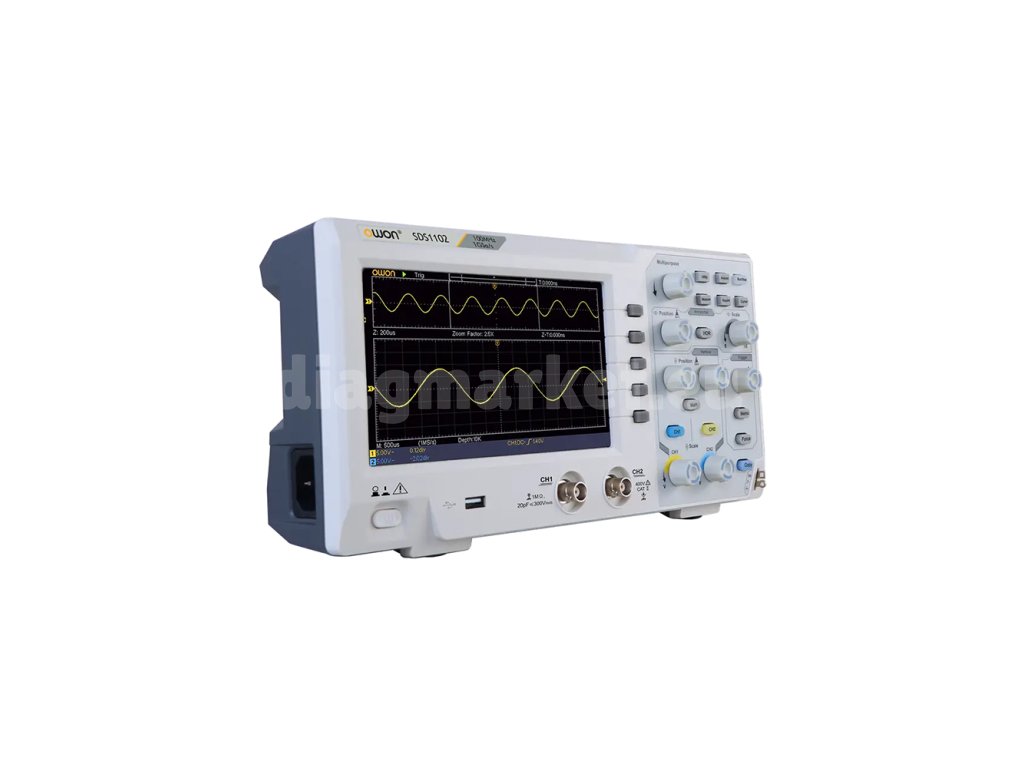

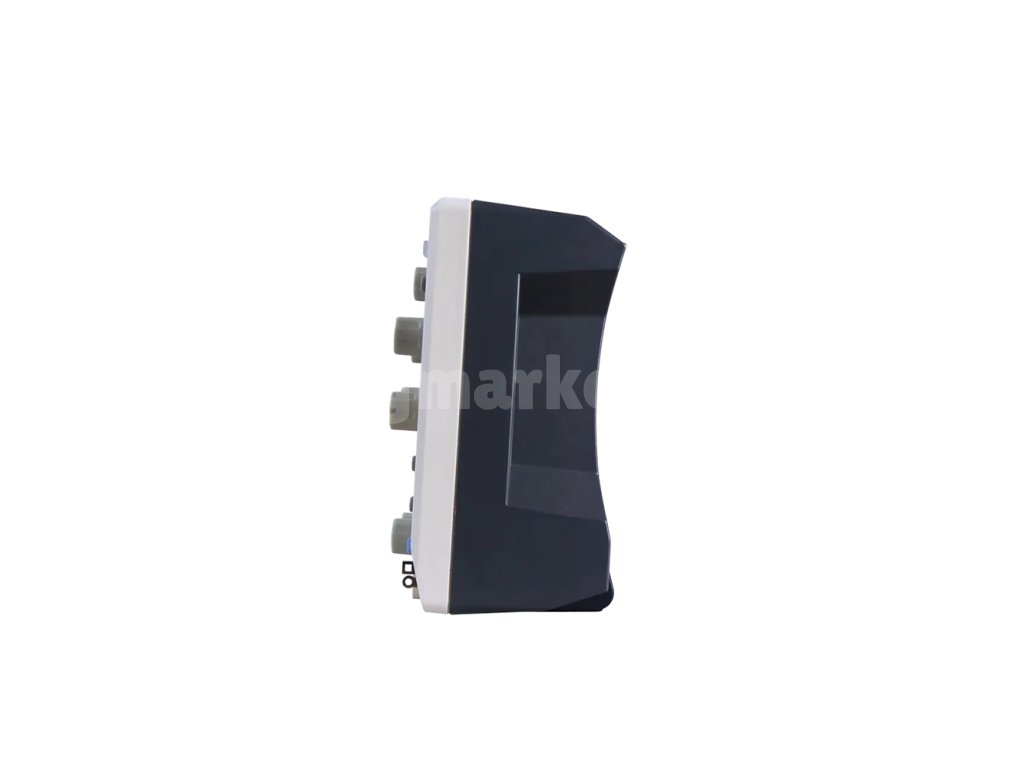

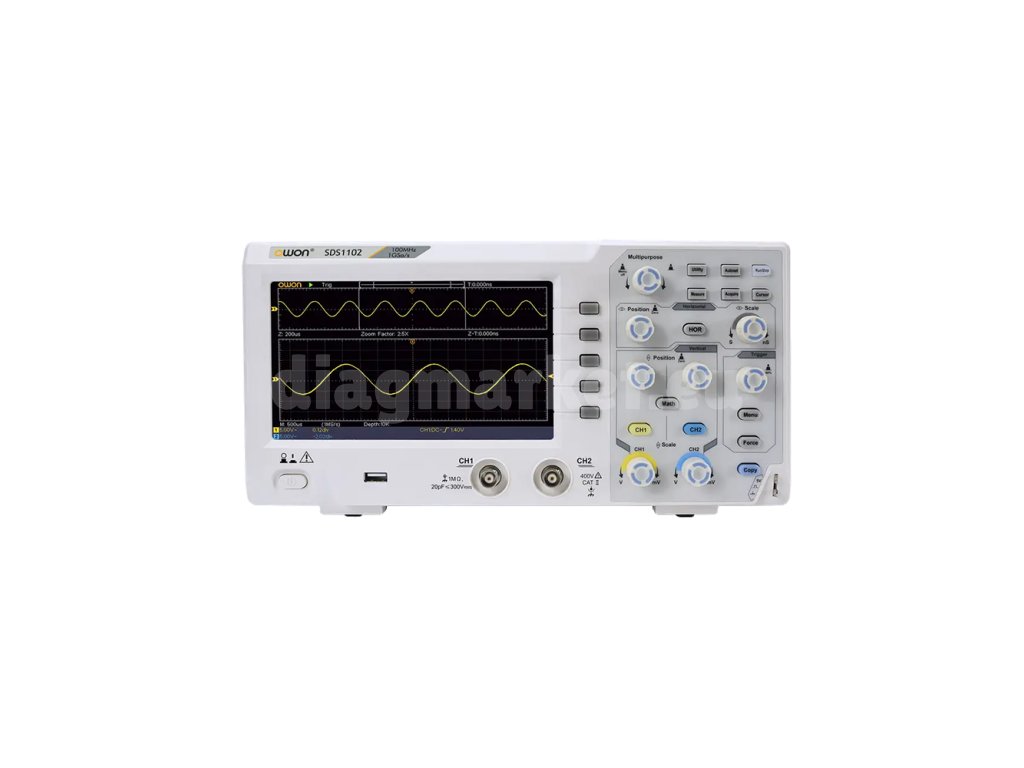

Owon SDS1102 2-channel oscilloscope
Code: 1206Product detailed description

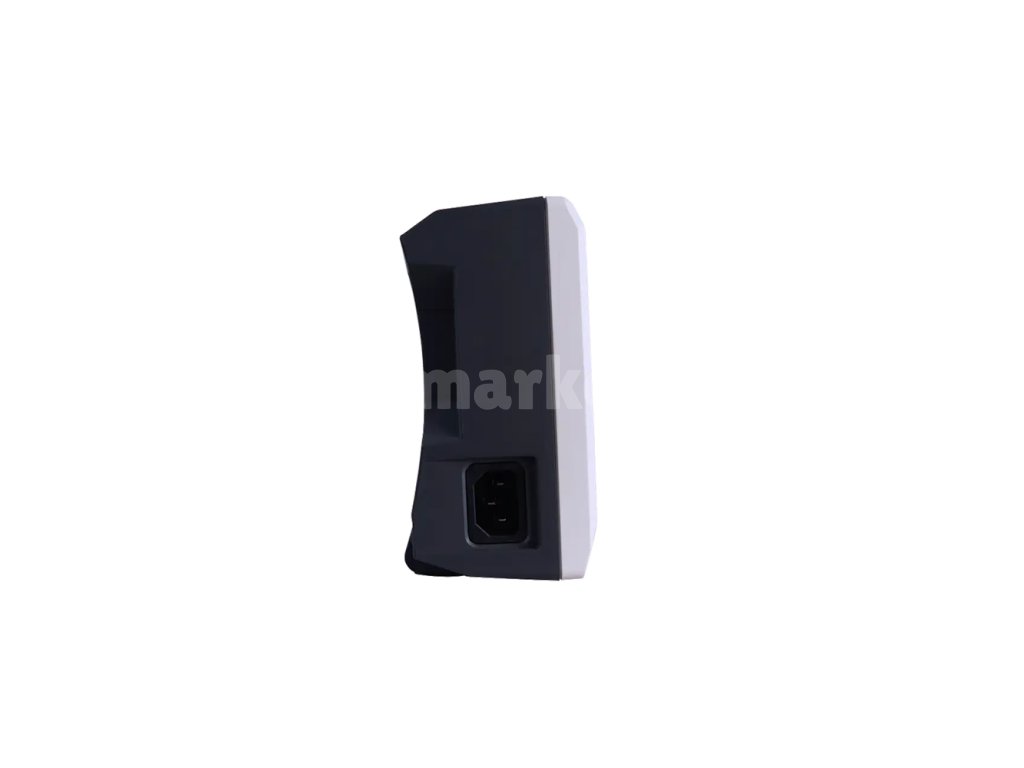

The Owon SDS1102 is a dual-band oscilloscope and offers very solid performance in its class. It has a sampling rate of 1GSa/s and a bandwidth of 100MHz and can store up to 10K points per measurement. The back of the oscilloscope has a USB interface for exporting measurement results to a PC and the front also has a USB interface for exporting to a storage device. The advantage of this model also lies in the passive cooling, the oscilloscope has no fan and is quiet.
Specifications
| Memory depth | 10 Kpts |
| Ramp-up time | ≤3.5 ns |
| Trigger types | Edge, Video |
| Vertical resolution | 8 bits |
| Vertical scale | 5 mV/div - 5 V/div |
| Horizontal scale | 2.0 ns/div ~ 100 s/div |
| Measurement parameters (vertical) | Vmax, Vmin, Vpp, Vtop, Vbase, Mean, Vmean, Vrms, |
| Measurement parameters (horizontal) | Period, frequency, +Wid, -Wid, rise time, fall time, +Dut, -Dut, delay |
| View | 7" TFT LCD display 800x480 |
| Connectivity | USB (host/device) |
| Dimensions | 301 x 152 x 70 mm |
| Weight | 1.1 kg |

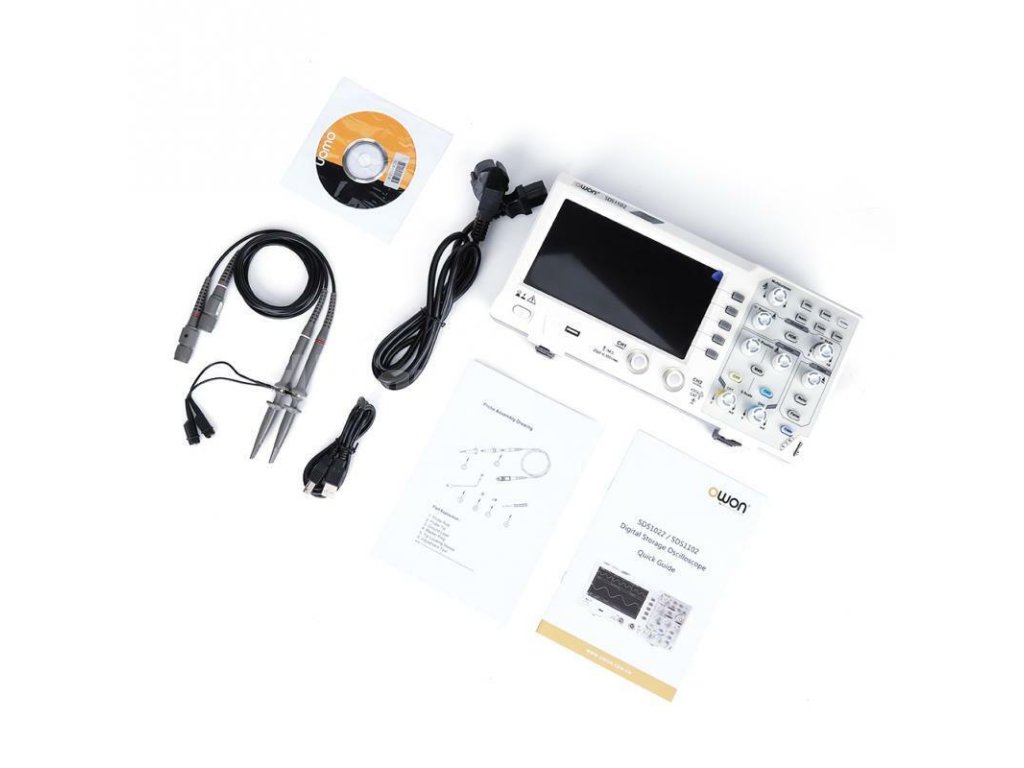

Package Content
- Owon SDS1102 oscilloscope
- USB cable
- power cable
- 100MHz passive probe set (2 probes)
- probe setup tool
- software CD
- manual
