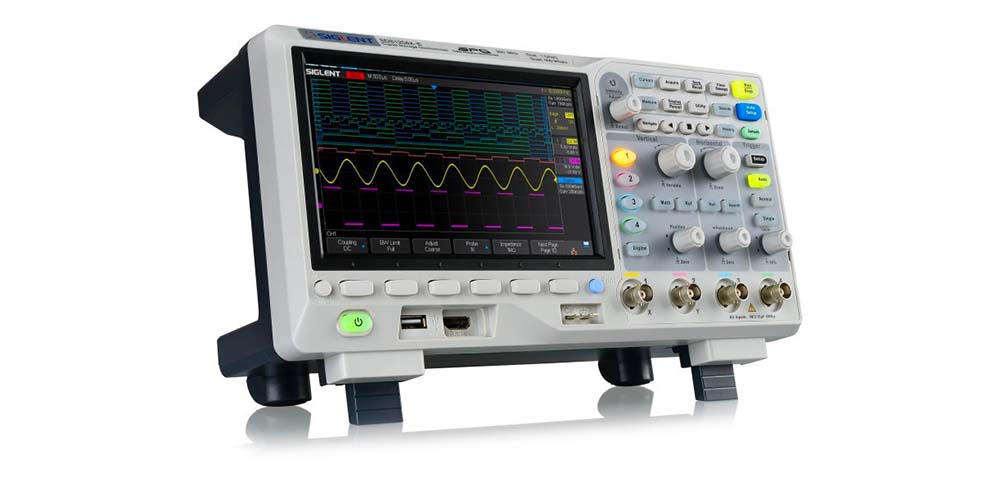

Siglent SDS1104X-E 4-channel oscilloscope
Code: 1215Product detailed description
This is a four-channel model from the "SDS1100X-E" series that can measure up to two channels simultaneously. The probe has two ADCs, so it can measure on two channels simultaneously without loss of sampling rate. If all channels are active, the probe still has 500MS/s per channel. With the new software update, a "data logging" function has been added, allows to measure and log samples at up to 1kSa/s for several hours at a time or for several days. This model has a throughput of up to 100Mhz and 14Mpts on two active channels or 7Mpts on four active channels.
Super Phospor
The oscilloscope features "Super Phospor" technology which provides high signal clarity and very low noise. With this technology, only 500µV per branch is required. This technology also includes the continuous transmission of the signal independently of the processor or screen, thus detecting errors that are not visible in the normal range. Also included as standard is a probe that can decode signals in the l2C, SPI, UART, RS232, CAN and LIN ranges.
Optional accessories
A function generator can be optionally ordered for this model to extend the range with a 25MHz and 16 channel logic analyzer. This extension can be connected at any time via USB interface.The probe can also be connected to the internet via using an internet cable or WiFi dongle, which can also be purchased as an option. This allows the sight to be controlled via the web interface. The probe can also be controlled via SCPI commands. Please contact us for an individual quotation.
Specifications
| Bandwidth | 100 MHz |
| Channels | 4 |
| Memory | 7 Mpts per channel (when using 4 channels) 14 Mpts per channel (when using 2 channels) |
| Vertical scale | 500 µV/div - 10 V/div |
| Horizontal scale | 1 ns/div - 100 s/div |
| Probe attenuation | 0.1X, 0.2X, 0.5X, 1X, 2X, 5X, 10X......1,000X, 2,000X, 5,000X, 10,000X |
| Frequency update rate |
100,000 wfm/s (normal), 400,000 wfm/s (sequential mode) |
| Trigger types | Boundary, Slope, Pulse Width, Window, Reverse, Interval, Blackout, Pattern, Video |
| Connection | USB Host, USB Device, LAN, Pass/Fail, Trigger Out, Sbus (Siglent MSO), WiFi via dongle |
| Decoding options | IIC, SPI, UART/RS232, CAN, LIN |
| View | 7" TFT LCD (800x400) |
| Dimensions | 325 x 176 x 295 mm |
| Weight | 2.5 kg (3.5 kg including box) |
Package Content
- Siglent SDS1104X-E oscilloscope
- USB cable
- 4 passive probes
- certificate
- power cord
- manual
