Stardiag SGW Bypass for FCA
Code: 1194Related products
Product detailed description

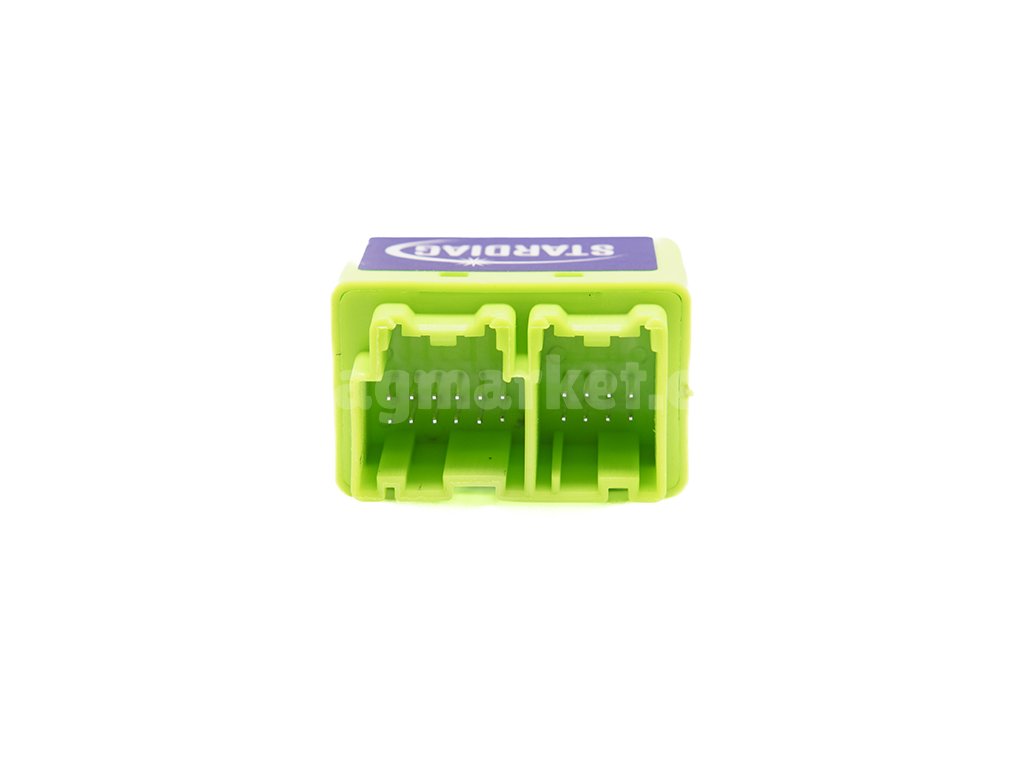

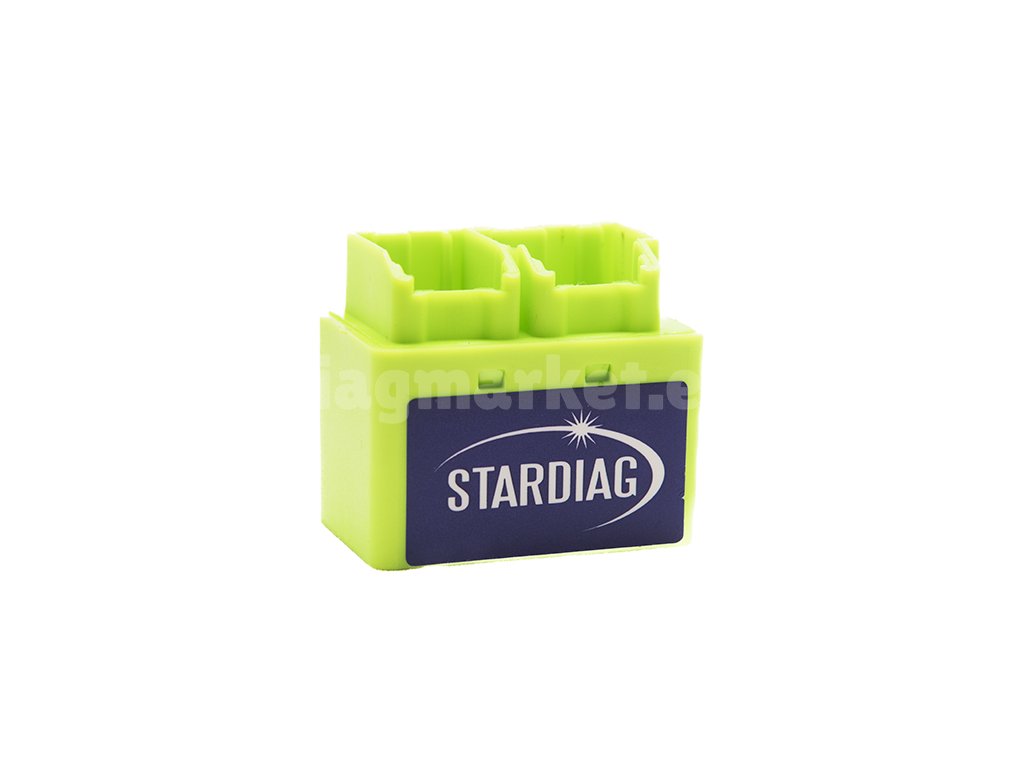

Stardiag SGW Bypass
Bridging or bypass allows full communication with Fiat, Alfa Romeo, Jeep and Dodge vehicles manufactured after 2018, using any compatible diagnostics.
Certain Fiat, Alfa Romeo and Jeep models manufactured after the end of 2018 are equipped with the Security Gateway module, which allows full communication with the vehicle only when using the original diagnostics available at authorized service centers. Other diagnostic devices like Multiecuscan or AlfaOBD cannot bypass this protection and are only able to receive data from the control unit (for example, reading error codes is possible, erasing is not).
The solution is to bridge the SGW module. You can use the Multiecuscan program (also in FREE version) to check whether your car is equipped with an SGW module. Select the SCAN function and if you find an SGW module in the list of units found, then the above limitation applies to your car.
Security Gateway
The functionality of the SGW module was designed to prevent unauthorized access to the car's control modules (hacking), overriding it limits this functionality. This is an important interference with the security integrity of the vehicle and use of this device is therefore at your own risk. It may also lead to the loss of the vehicle's legal warranty. The SGW Bypass is a device primarily used to enable connection to any diagnostics, we strongly recommend reassembly of the SGW module after diagnostic work has been completed.
Models with Confirmed SGW Module Presence
- Fiat 500X / Jeep Renegade 2018+
- Fiat 500L MCA 2018+
- Fiat Doblo 2018+
- Alfa Romeo Giulia 2018+
- Alfa Romeo Stelvio 2018+
- other Jeep models: Compass, Wrangler, Cherokee, Grand Cherokee 2018+
- Dodge models: Challenger, Charger
Note: For some models, the SGW module has been installed since late 2017
SGW Bypass takes 3 minutes (e.g. Alfa Romeo Giulia) to 1 hour of time to install (e.g. Alfa Romeo Stelvio). The installation time varies depending on the car model.
Package Content
- SGW Bypass
