VCP Diagnostic Bundle (VAG CAN PRO)
Code: 450Product detailed description
The modern diagnostic system VAG-CAN-PRO is designed for diagnostics and programming of control units of VAG vehicles - VW, AUDI, ŠKODA and SEAT. By purchasing the VAG-CAN-PRO you get your own license and updates of one year. After this period the update is optional. VCP offers support for VW vehicles from 2003 to the present. Support for CAN-BUS protocol and the latest ASAM protocol - UDS/ODX, which is used by e.g. SUPERB II. It does not support older vehicles such as Felicia, Octavia I, Fabia etc. (to support all VAG vehicles, you need to purchase the VCP+K version).
Functions
- Control Unit Identification Display
- Read and Erase Fault Memory
- Measurement Reading / Graphical Output
- Data Logger - Data Storage
- Basic Settings
- Customization
- Coding
- Actuator Test
- Automatic Vehicle Test

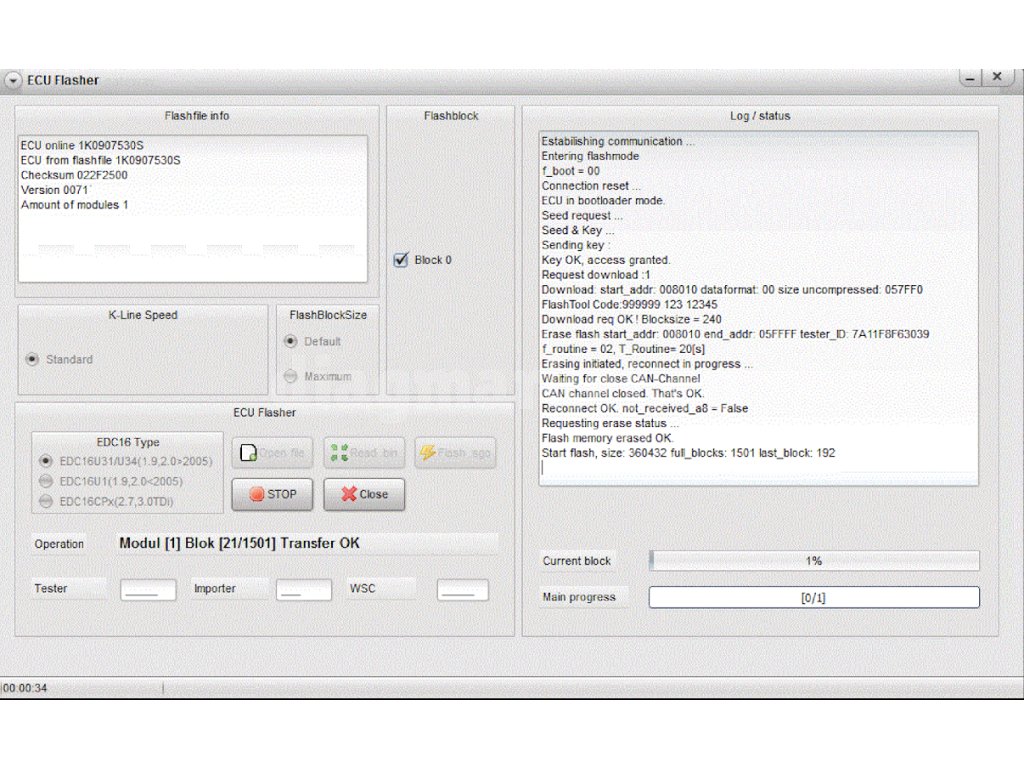

- ECU Flash - Control Unit Firmware Update
VCP Automatic Functions
The VAG-CAN-PRO system has the most extensive Automatic functions. Many coding procedures, adjustments, calibrations, tests and various control unit settings are fully automated. There is no need to use additional software ( various calculators and manuals ) or to know the exact data to be entered. Each automatic function is then described in detail in VAG-CAN-PRO so that the user understands its meaning and function:
- Resetting the service interval
- Activation of cruise control
- Deactivation of the front passenger airbag
- Opening/closing the electric handbrake to change brake pads
- Emergency DPF regeneration ( 1.4, 1.9, 2.0, 2.5 TDI PD )
- Emergency DPF regeneration ( 3.0 TDI )
- Throttle body adjustment - DBW engines
- Injector coding 2.7 / 3.0 TDI CommonRail
- Changing units in the instrument cluster
- Change language set in instrument cluster
- Activating Bluetooth on the Audi Q7 / Audi A6 4F
- Basic setting of the xenon headlight range
- Calibrating the G85 sensor
- Lubricating/coding the central locking remote controls
- Switching Nordic mode on/off ( daytime running lights )
- WEBASTO function test ( PQ 35 )
- ABS system pressure test ( MK60/70 - GolfV, Passat, Altea, Leon )
- Switching on sec. fuel pump
- Enable / disable automatic door lock
- Xenon headlight coding
- Enable / disable seat belt signalling
- Calibrate T3 sensor DPF
- Enable / disable "System test" of the ABS / ESP control unit
- Tyre pressure sensor coding (Passat B6/ Passat CC/ Jetta)
- Battery coding
- Key coding for IMMO IV generation ( PQ35/46 )
- Unlocking a blocked WEBASTO
- Blocked APS-function of front wiper
- Calibration of ESP acceleration sensor G200
- Calibration of ESP pressure sensor G201
- Change microphone sensitivity of Nokia Handsfree
- ESP acceleration sensor calibration G251
- Adjusting brake pad thickness - Audi A8
- Activating the automatic window opener
- Activating automatic folding of the exterior mirrors
- Activating the Coming-home / Leaving-home functions
- DPF adaptation after 2.0/2.7/3.0 TDI / VW Crafter replacement
- Checking the DPF 2.0TDi / 2.7-3.0 TDI
- Activating the graphic parking assist system of the Audi A6/Q7
- ESP control unit coding - left/right steering
- Checking injectors 2.7/3.0 TDI
- Unlocking the EJECT button on the MMI DVD Drive
- Encoding the MMI device list
- Activating/deactivating tyre pressure monitoring of the Audi A6 4F
- Injection pump check 1.9/2.0 TDI
- Recoding ABS/ESP control unit, USA/Europe variant
- Adapting new engine control unit to IMMO III generation
- Emergency DPF regeneration VW Crafter, CExx, BJx engines
- Calibration of ESP sensor G200, G202, G251 on vehicles r.v. 6/2007 and newer
- Adjustment of turbocharger on 2.7/3.0TDI engines
- Service interval adjustment
- Vehicle acceleration measurement
- Recoding of door electronics, right/left steering variants
- Adjusting the ESP control unit for DSG gearboxes of the Audi A3 8P r.v. 2006
- Activating/deactivating the service menu on the MMI
- Adapting the throttle for 2.7/3.0 TDI engines
- Reading the actual km value from the EDC15 control unit
- G70 air weight test on TDI engines
- Emergency DPF regeneration on BLE engines - Touareg 5.0 TDI
- Setting the LED brightness level for the daytime running lights of the Audi A6 2009
- Adjusting the idling speed for petrol and TDI engines
- Activating the TV function on MMI 2G/3G
- Uploading data from ZDC
- EPB check function
- Activating the service menu for the RNS510 navigation system
- Activation of DRLs using fog lights on the BCM control unit
- Recoding the instrument cluster of the Audi A6/Q7 r.v. 2009 from US to EU units
- Recoding the TV tuner from the US version to the EU version on Audi A6/A8/A4 8K
- Chiptunning test
- Reading the immobiliser PIN code from the EDC15P+ and EDC16 control units
Updates are downloaded from the Internet directly to the computer where the VAG-CAN-PRO program is installed.
Supported Vehicles
All Audi, Seat, Skoda, Volkswagen vehicles with CAN-BUS (approx. from 2004 - now).
Bugatti: Veyron, Shrion.
Bentley: Continental, Bentayga, Mulsanne.
Lamborghini: Aventador, Gallardo.
Supported Languages
English, German, Polish, Czech, Dutch, Italian, Russian.
PC Requirements
- WIN XP, VISTA, 7, 8, 10, 11 in both 32- and 64-bit version
- USB port
Package Content

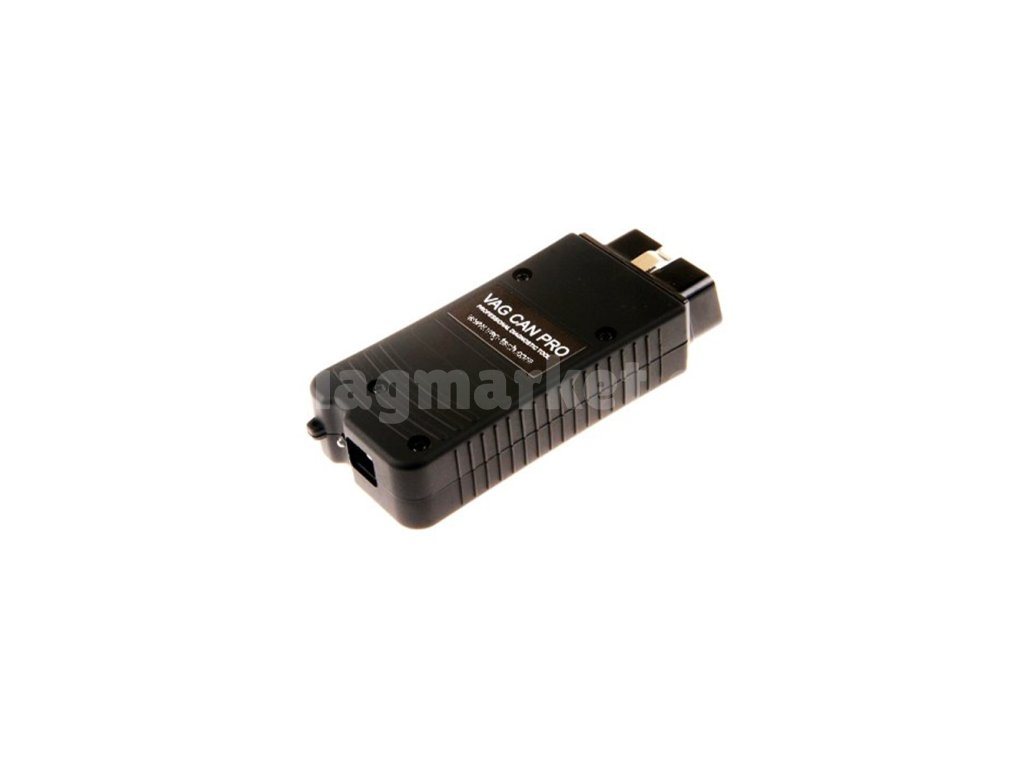

- Original VCP diagnostic adapter with built-in HW key
- VCP software license
- Manual for system start-up
