Vgate vLinker MS bluetooth
Code: 2601Product detailed description

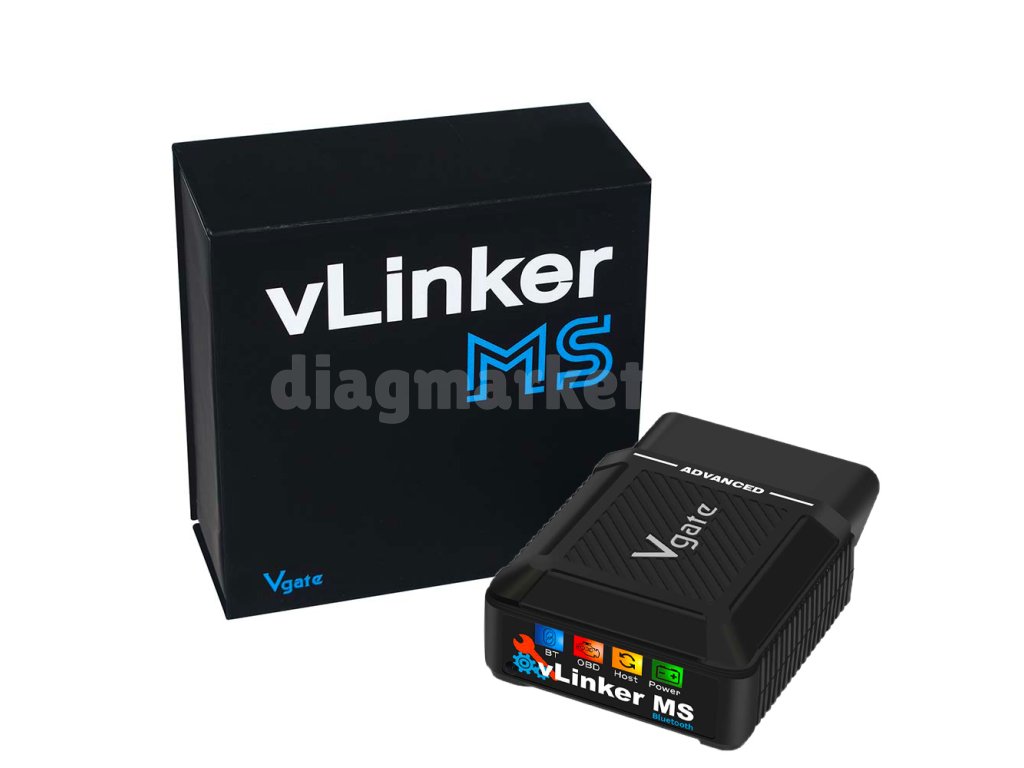

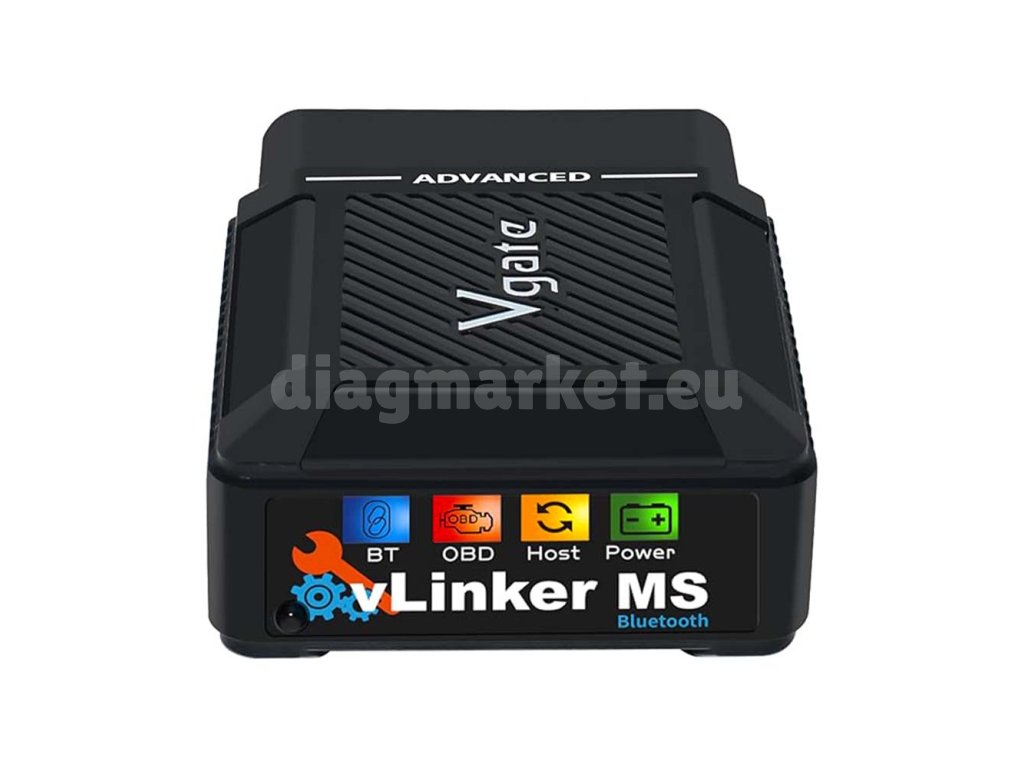

vLinker MS (MFI) is a bluetooth adapter that allows you to transform your iPhone or Android device, or Windows PC into a professional-grade diagnostic scan tool. Being the one of the most advanced adapters on the market, you can be sure of the stability, speed and security of your connection. Key features include Apple MFI certification, support for 5 CAN channels, free firmware updates. In addition, vLinker MS is hacker-proof.
Main Features
- Work in 12V or 24V automotive systems
- Apple MFI certified device
- World’s fastest Bluetooth OBD-II adapter (baudrate: 3Mbps)
- Hacker-proof
- Free firmware updates
- OBD request bytes up to 4K bytes
- Supports HS-CAN, MS-CAN, SW-CAN, CH-CAN, LS-CAN 5 CAN channels
- BatterySaver technology - low power mode
- Automatic sleep & wake-up
- Superior compatibility - works with more 3rd party apps & software than any other adapter
Complete access to all control units allows you to check the details of the devices that control a vehicle system or subsystem, e.g. part number, software number, reading and clearing trouble codes, adaptation, basic settings, coding, login etc. - depends on the used software.
Protocols Support
| SAE J1850-PWM | yes |
| SAE J1850-VPW | yes |
| ISO 9141-2 | yes |
| ISO 14230-4 (slow) | yes |
| ISO 14230-4 (fast) | yes |
| ISO 15765-4 (CAN) | yes |
| SAE J1939 (CAN) | yes |
| ISO 11898 (raw CAN) | yes |
| Medium Speed CAN (MS-CAN) | yes |
| Single Wire CAN (GMLAN) | yes |
| Chassis CAN (CH CAN) | yes |
| Infotainment CAN (LS CAN) | yes |
| Bluetooth c3.0 interface | yes |
| Apple MFI Certification | yes |
| Maximum Bytes of One Reading | 4095 |
| Auto-sleep Mode | yes |
| Button Wake Up Device | yes |
| Wakes on OBD Bus Activity | yes |
| Wake on Battery Voltage | yes |
| Wake Up by Remote (all vehicles) | yes |
| Hacker-proof security mechanism | yes |
| Pass, Block and Flow Control Filters (EV) | yes |
| Firmware Updates | yes |
| Maximum Communication Rate | 3 Mbps |
| Compatibility with ELM327 Instructions | V2.3 |
| Compatibility with STN Intructions | yes |
| Maximum Number of Bytes Sent | 4095 |
Compatible Apps
- BimmerCode (BMW, Mini and Toyota Supra coding)
- Torque (OBD-II diagnostics)
- Forscan (for Ford, Mazda, Lincoln)
- JScan (for Jeep, Chrysler, Dodge, RAM)
- OBD Auto Doctor (OBD-II diagnostics)
- OBD Fusion (OBD-II diagnostics)
- Multiecuscan (FCA vehicles)
- AlfaOBD (FCA vehicles)
vLinker MS is compatible with the software only. Some functions or the software itself are not free, you need to pay additional fees to the software producer.
Package Content
- vLinker MS bluetooth adapter
- user manual
